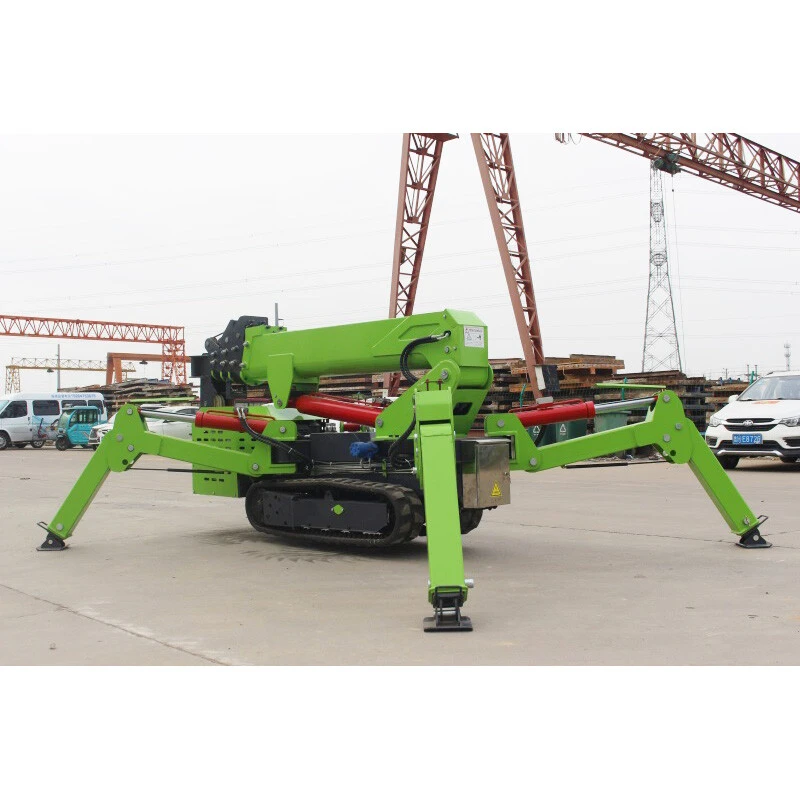

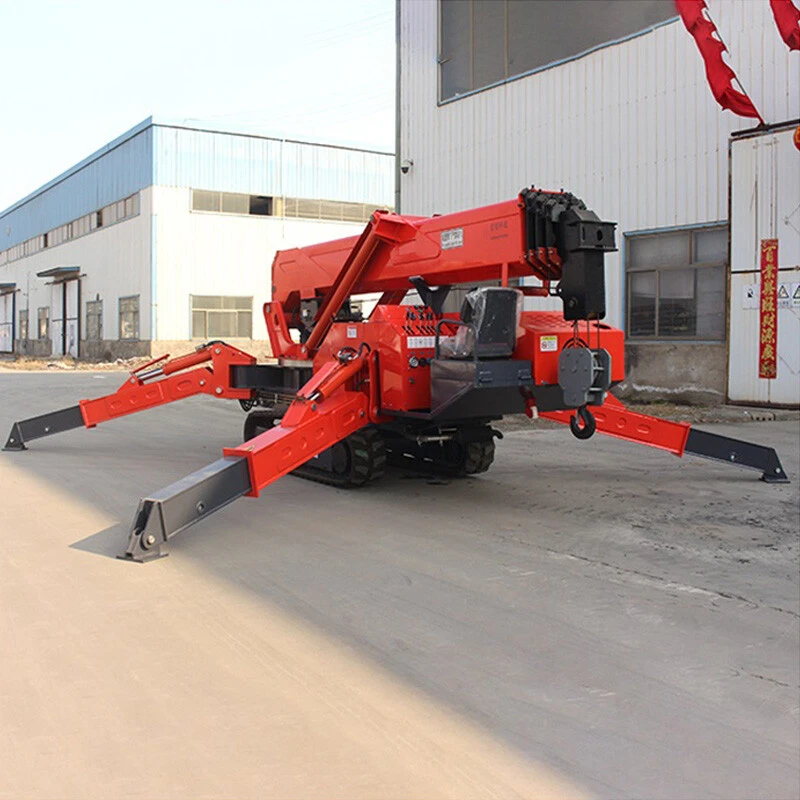

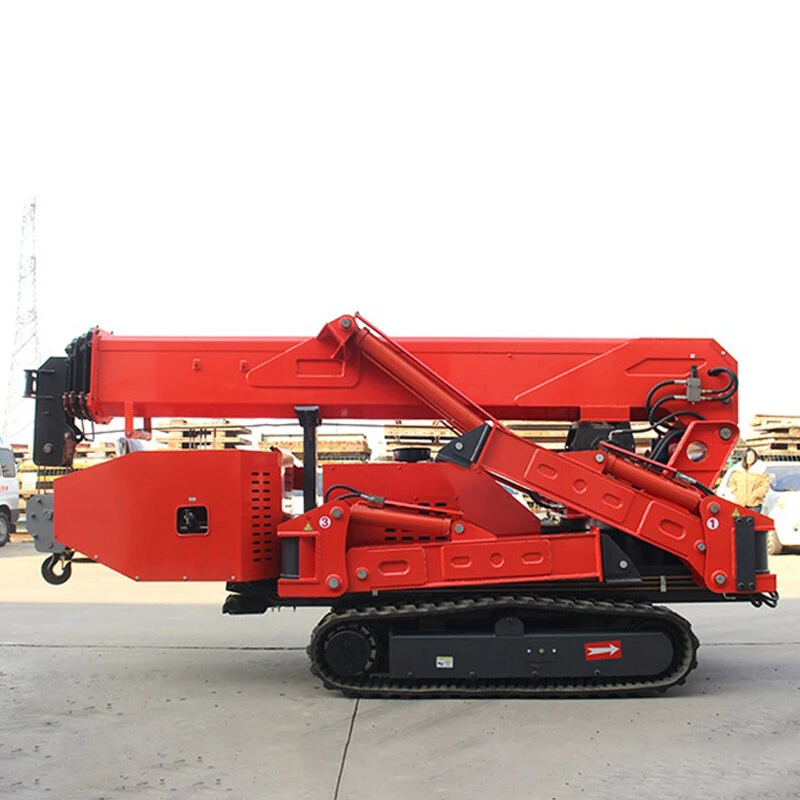

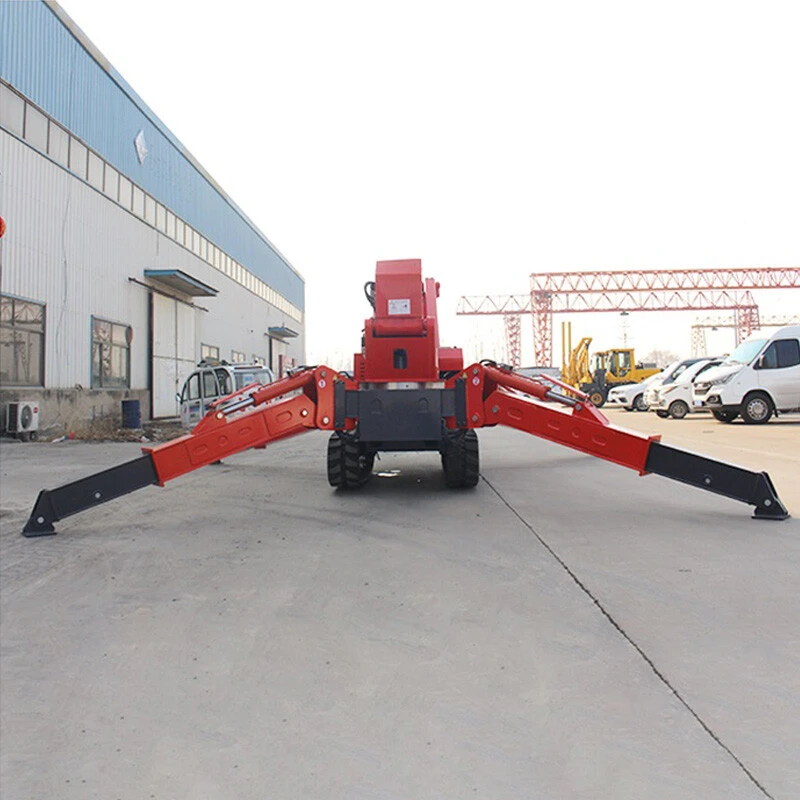

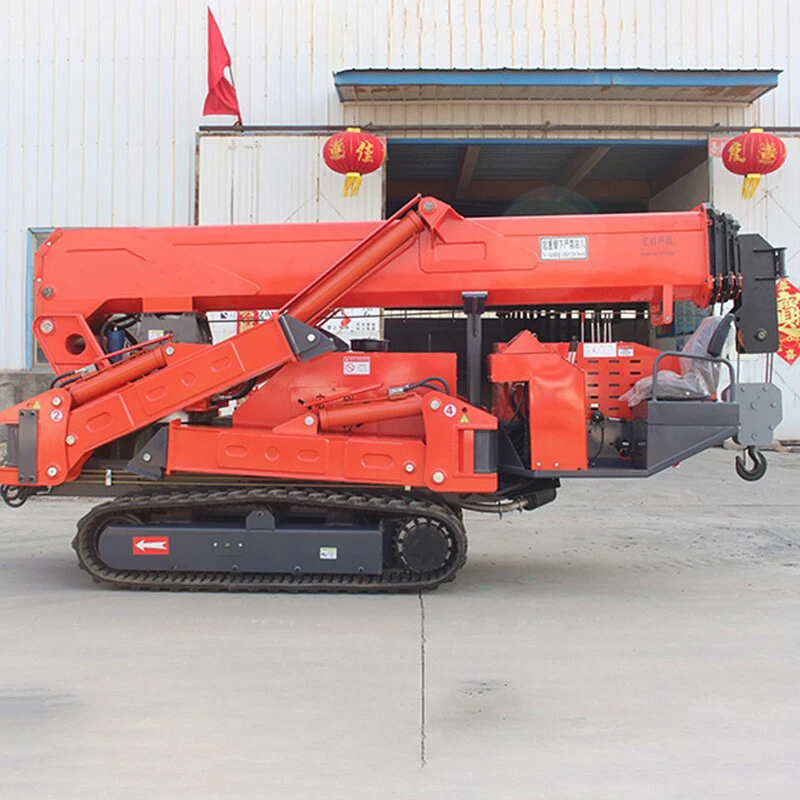

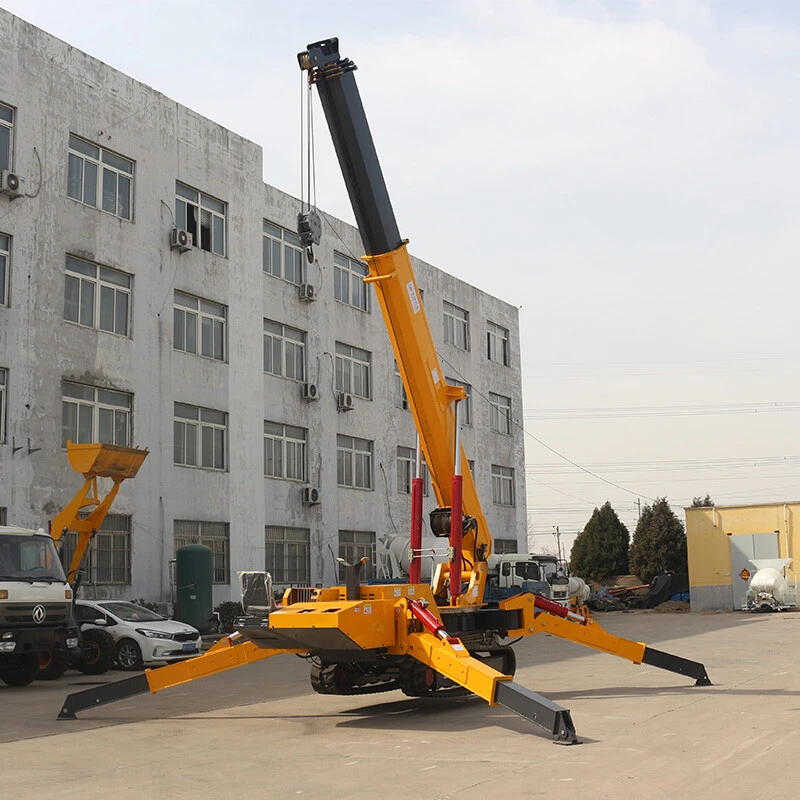

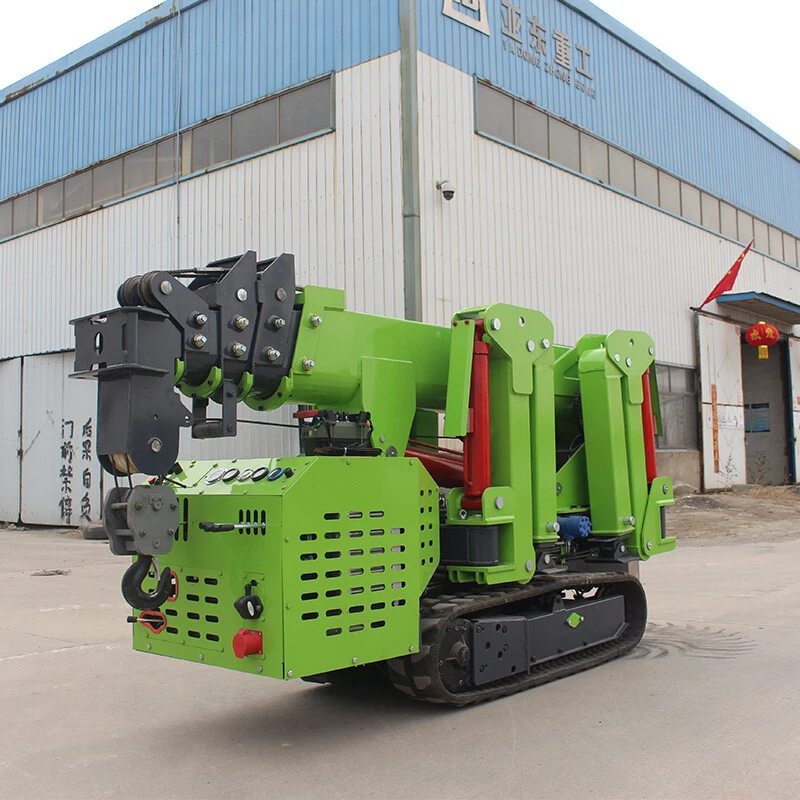

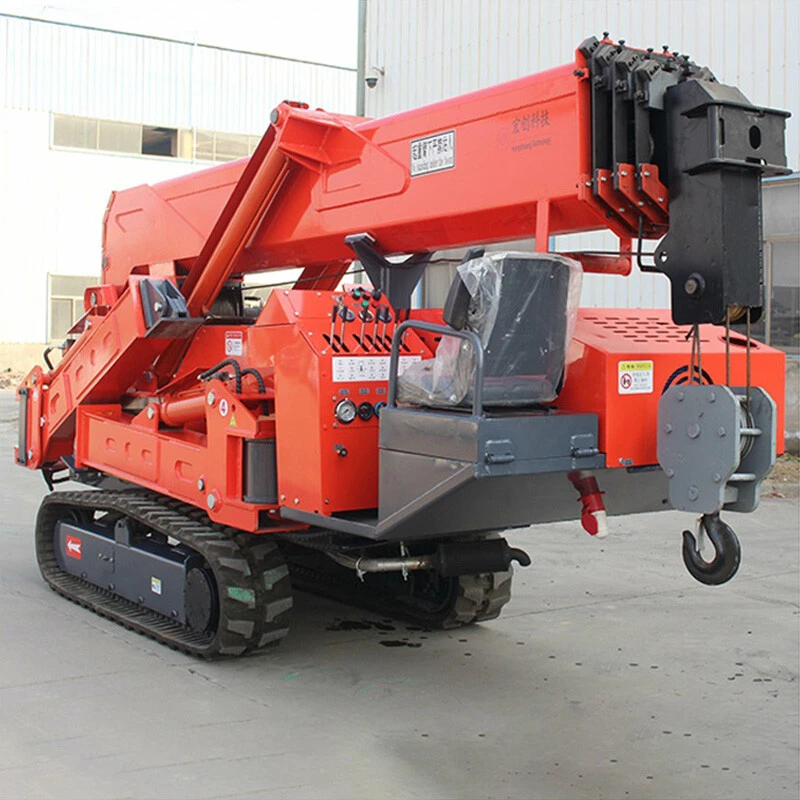

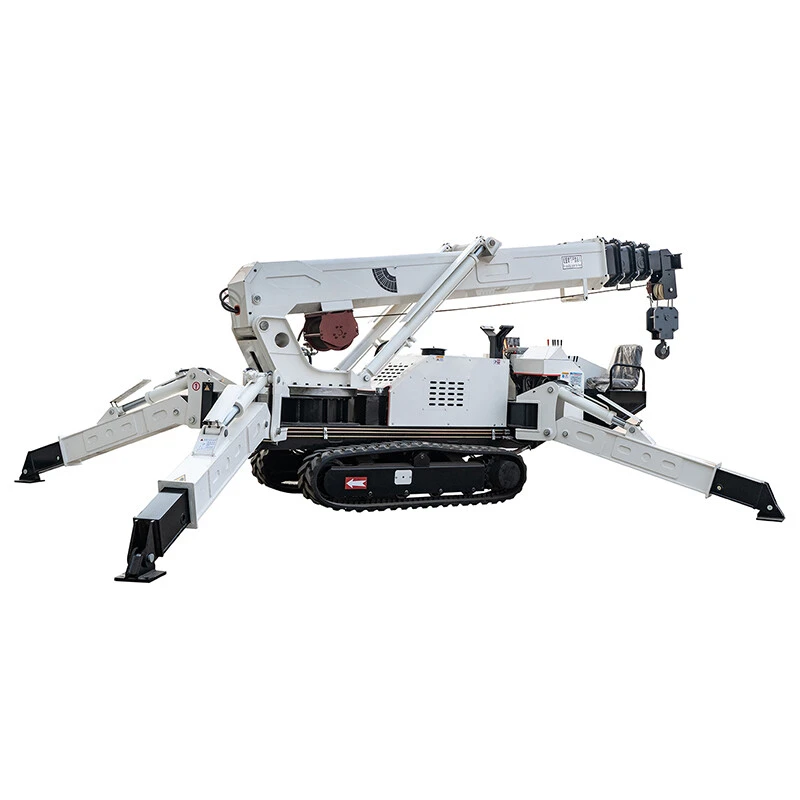

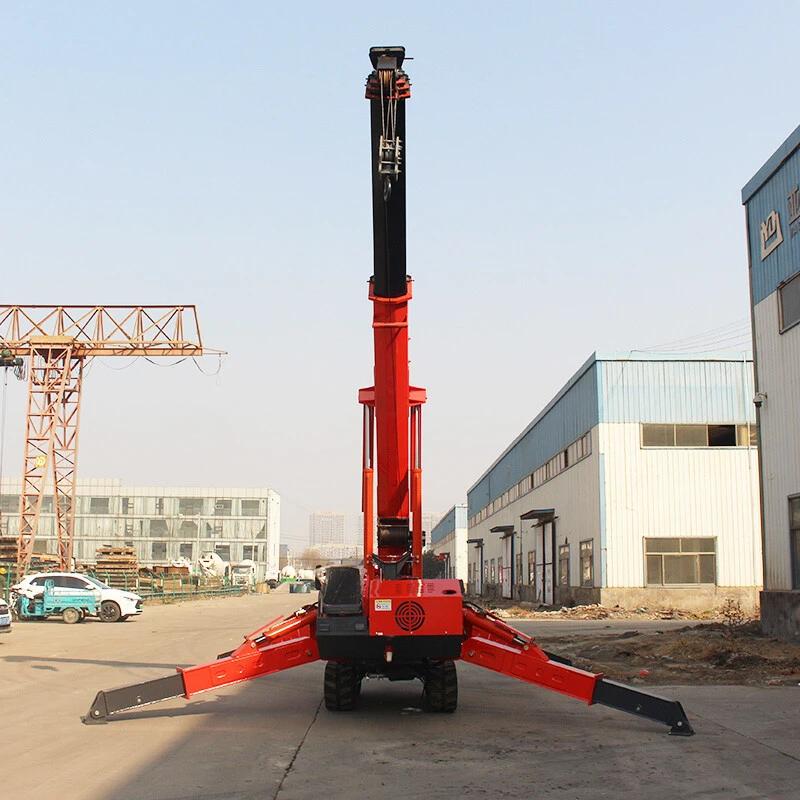

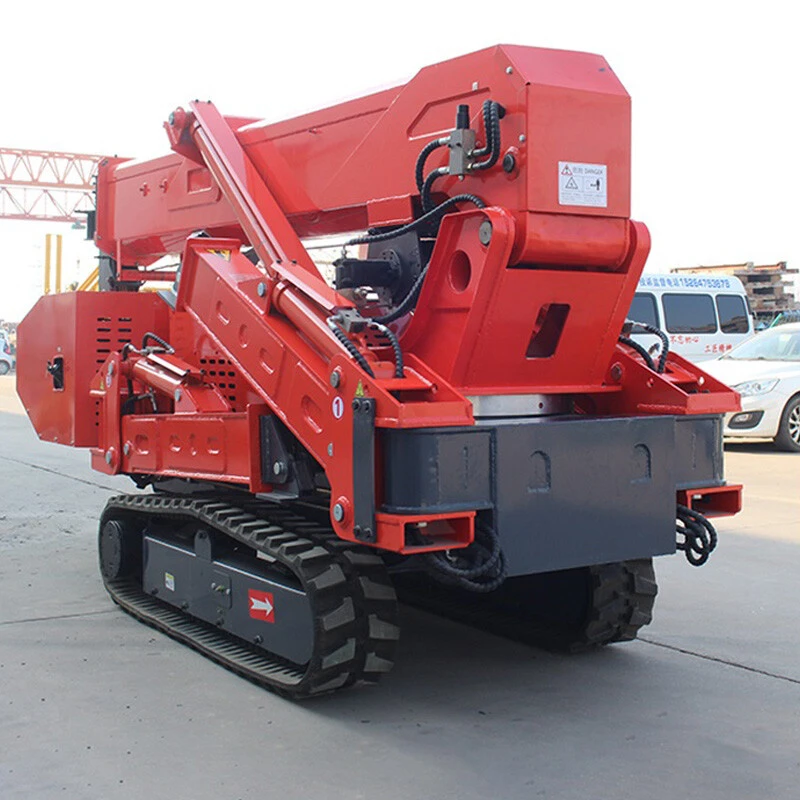

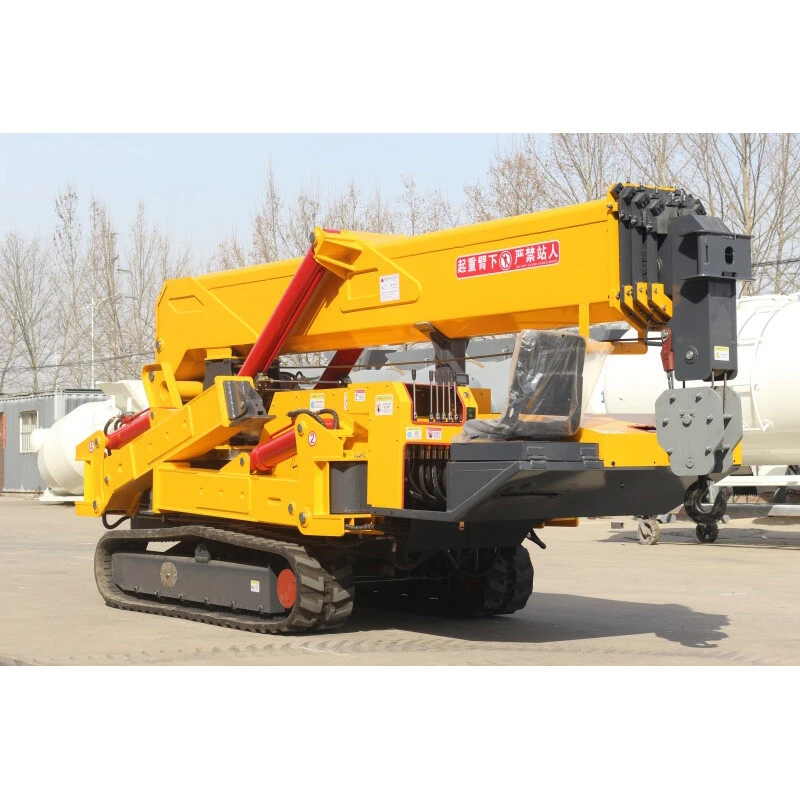

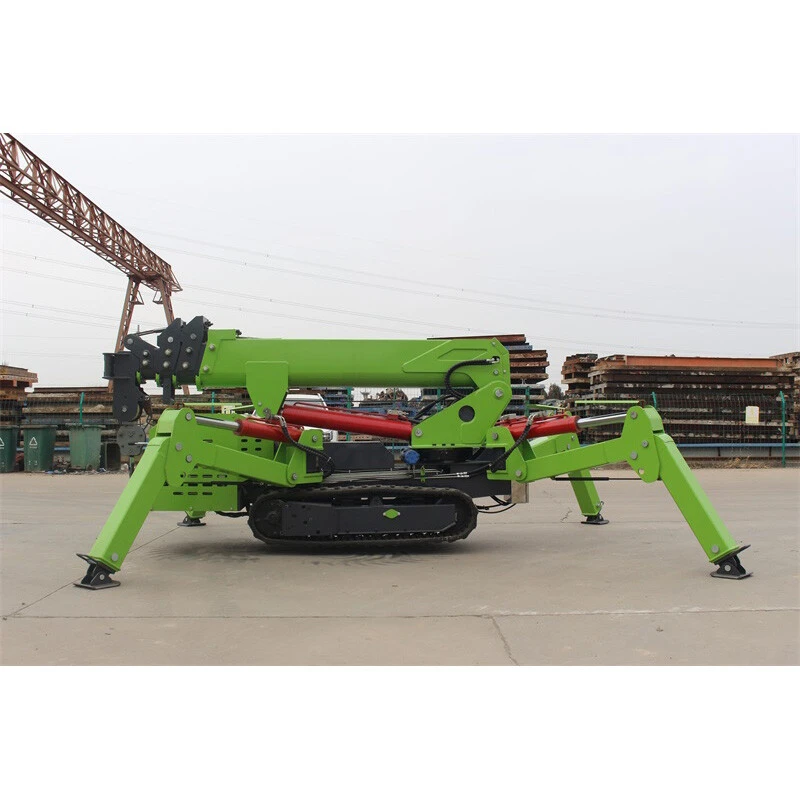

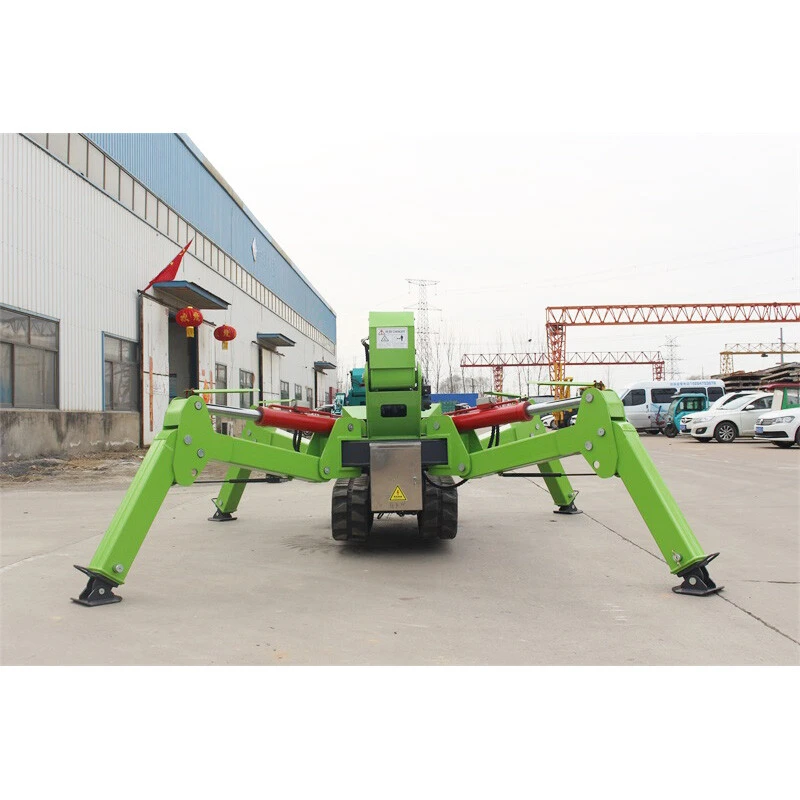

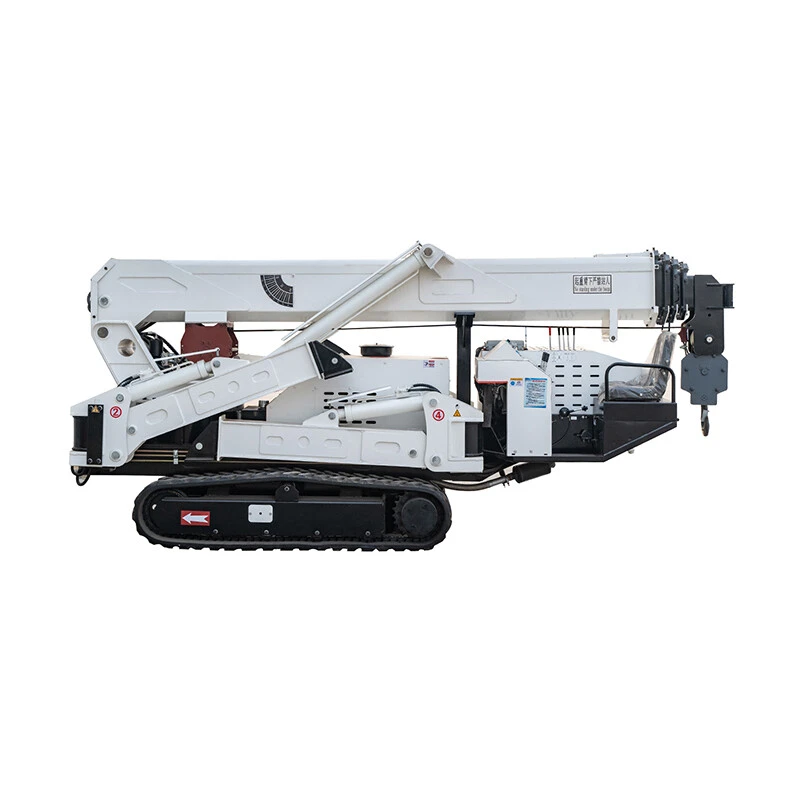

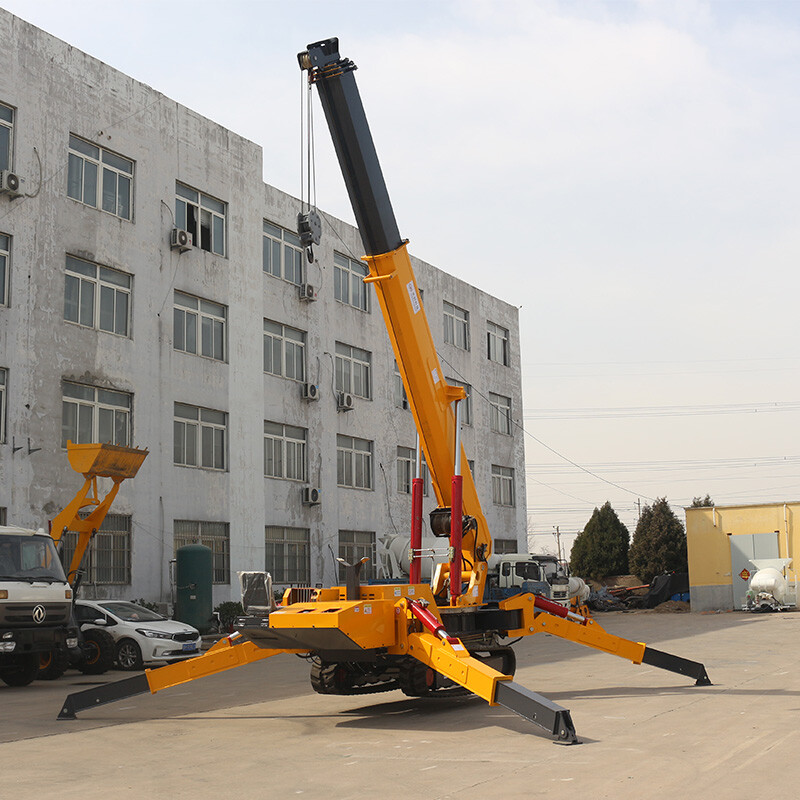

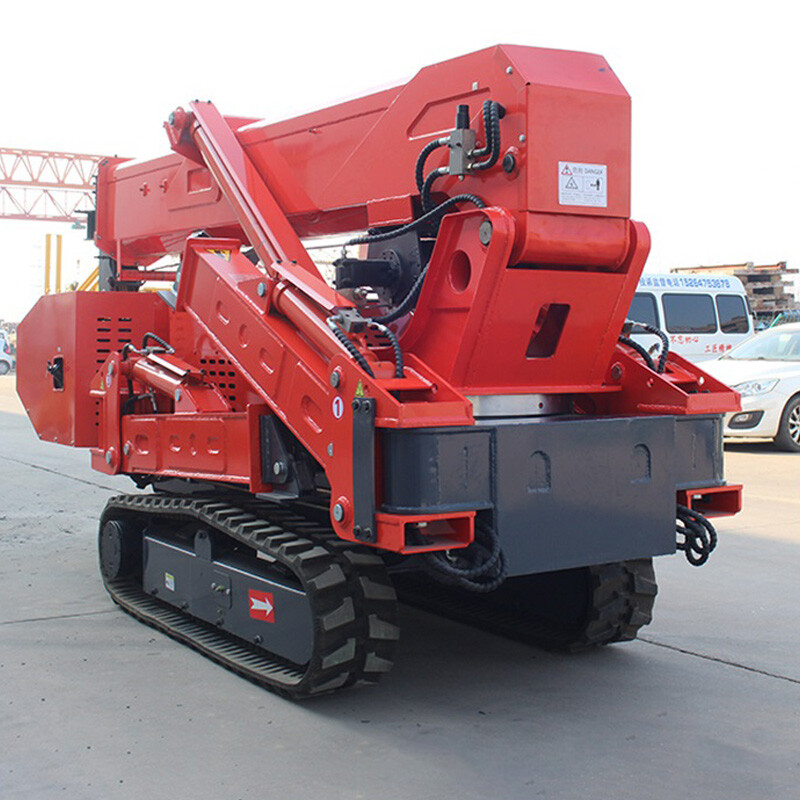

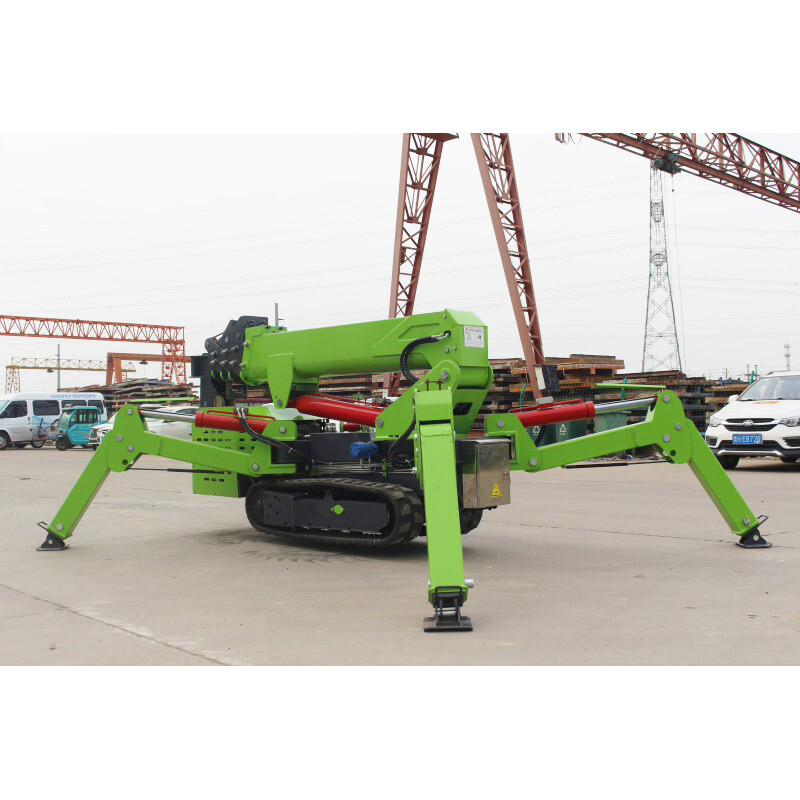

1 TON Spider Crane

Product Description

This is a remote-controlled intelligent spider crane, and the power and hydraulic systems are all made of domestic high-end and imported parts. The spider crane is fully functional, compact, hydraulically operated, and has a safety design that prevents incorrect operation. It can adapt to rugged outdoor venues and has a hexagonal boom that can be extended. The crane is sturdy and durable, and can easily complete operations even in harsh environments. It has a safety design that prevents incorrect operations, making it easy for operators to complete lifting operations.


Product Usage Scenarios

Spider cranes are widely used in the maintenance and installation of electrical equipment in substations, the maintenance and installation of mechanical and chemical workshop equipment, the installation of engineering structures, and glass curtain walls and other narrow spaces.


Specifications1t
Maximum operating radius5m×0.3t
Maximum ground lift5.8mX0.8t
Maximum underground lift---

Winch device

Expansion device

Lifting speed of hook0-8m/min
Wire rope specificationΦ8mm×35m

Undulating device

Gyratory device

Boom type4-section boom, U-shaped high-strength manganese
Boom length/time1.7m-5m/22sec
OutriggerBoom angle/time0-75°/13sec
Traveling deviceSwing angle/speed0-360 ° (continuous)/60sec
electric machinery engineOutrigger movement formManual screw out+oil pressure automatic support (two legs)
Maximum extension (mm)2900 (long) X2770 (rear), (front)

Operating system

Standard configuration

Vehicle size

Walking modeHydraulic motor drive, two speed
Travel speed0-2.5km/h
Gradeability20°(36%)
Manufacturing processVoltagegasoline

Winch device

Expansion device

Undulating device

Gyratory device

Outrigger

Traveling device

Electric machinery

Manufacturer9.6 kW
Type/displacementElectric starting
Startup mode-5°C~40°C
Startup performanceGasoline/8L
Fuel/volume12v 45AH
Battery capacity274g/kW-h
Fuel consumption rateManual operation, manual walking+remote control (optional)

Engine operating system

Operation type (boom/outrigger), manual walkingKemai hydraulic system (optional)
Operating characteristics4-section boom, U-shaped high-strength manganese
Standard configurationEngine power
Vehicle sizelength 2095width 600*height 1450
Manufacturing processPaint assembly process


Yanmar engine 2TNV70 with EPA certificate,With remote control
