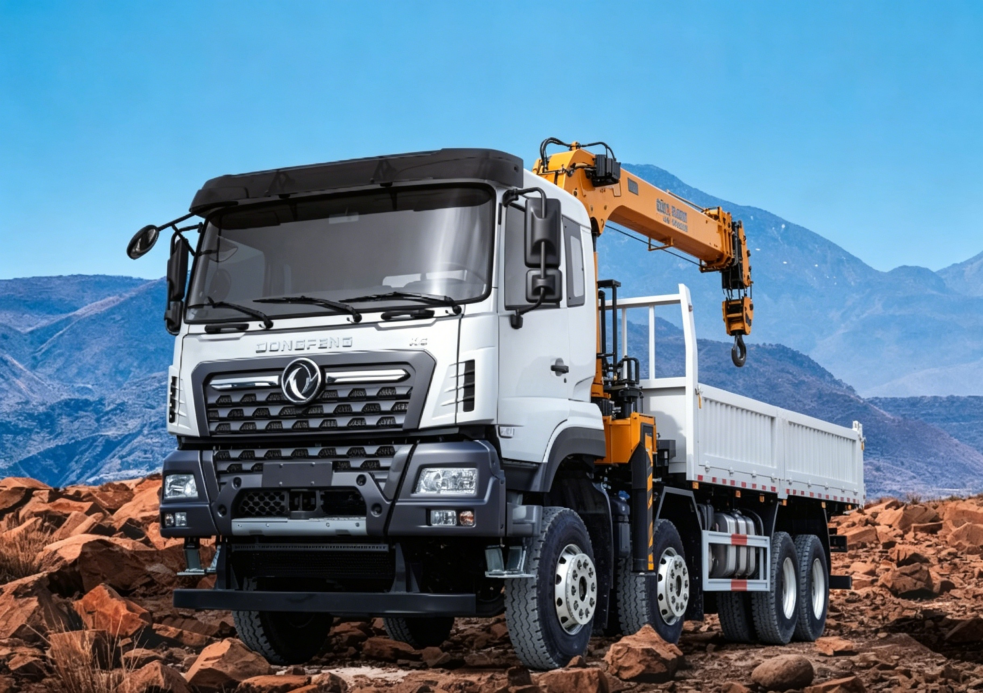

Truck Crane

Vehicle Model

EHY1310FSQE

Vehicle Brand

EHY

Overall dimensions

9500X2500X3370mm

Curb weight

24570kg

Van dimensions

7500X2400X550mm

Maximum loading of crane

16 tons

Chassis model

EQ3310GFC

Chassis brand

DONGFENG

Overall dimensions

9225×2500x3250mm

Wheel base

2050+3200+1350mm

Front/rear wheel track

2030/2030/1880/1880mm

Front/rear suspension

1525/1100mm

Approach/departure angle

15/30°

Maximum speed

89km/h

Chassis Manufacturer

Dongfeng Automobile Co.,Ltd

Cab

Configuration

One and a half cab,allowable 3 passengers,air conditioner

Color

White,other color is optional

Engine

Model

dCi45051

Emission

Euro 5

Type

Inline 6-cylinder, four-stroke, turbocharged, intercooled, high-pressure common rail,diesel engine

Rated power

450hp,rated power speed 1900rpm

Displacement

11120ml

Bore x stroke

123x156mm

Manufacturer

Dongfeng Commercial Vehicle Co., Ltd.

Tire

Size

12.00R24

Number

12+1 nos

Fuel tank

400L

Front axle

6.0T

Rear axle

25T

Drive form

8X4

Rated voltage

24V,DC

Transmissions

DT1425,14 speed forward 2 reverse.

Steering wheel

Left hand drive
