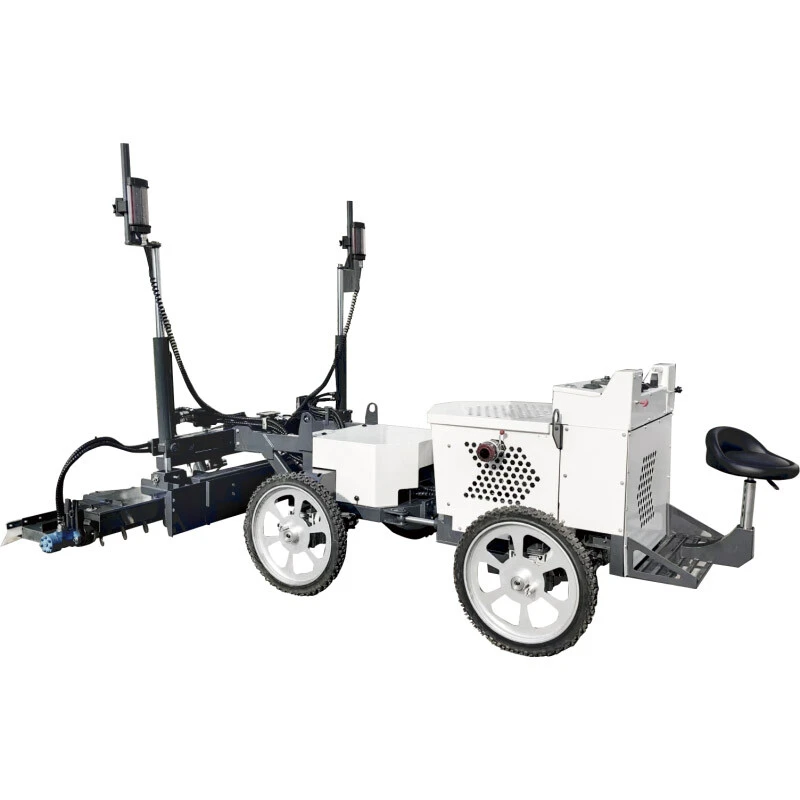

Laser Leveling Machine-25D

PRODUCT  DESCRIPTION


The laser leveling machine can automatically complete the leveling operation without manual intervention,saving labor costs.It has high precision,which can reach the millimeter level and can meet the requirements of most projects.It has high speed and can complete large-area leveling operations in a short time,improving work efficiency.It has good stability and can operate stably fora long time,reducing maintenance costs.


PRODUCT FEATURES


  • Honda imported engine;

  • Hydraulic auger paving reduces manpower;

  • Leveling width 2500mm,high working efficiency;

  • Leveling thickness 50-300mm,easy to adjust.



TypeXR4W-25D Laser Leveler
PowerModel numberHonda 690 engine
Power (output)13KW
Laser SystemLaser delivery systemSwiss Leica Transmitter
Laser reception systemLeica Receiver Switzerland
Laser control systemsAmerican Danfoss laser control system
Laser control system method  Automatic laser micro system control for automatic leveling
Leveling SystemSuspensionstationary
Width of vibration plate2500mm
Leveling thickness50-300mm
Vibratory force2000N
Vibration motor speed3600rpm
Travel SystemTravel driveLow-speed high-torque reducer +hydraulic drive motor
Hydraulic systemDanvers, USA
Intelligent Walking Control System        One-touch speed control
Travel modeElectronically controlled servo system for automatic travel
Travel speed0-55m/min
Working speed4m-20m/min (speed adjustable)
Paving methodHydraulic cage paving
Walking TiresSolid non-slip tires
Size Weight
Body size3500×2850×1700mm
Body weight1000kg
