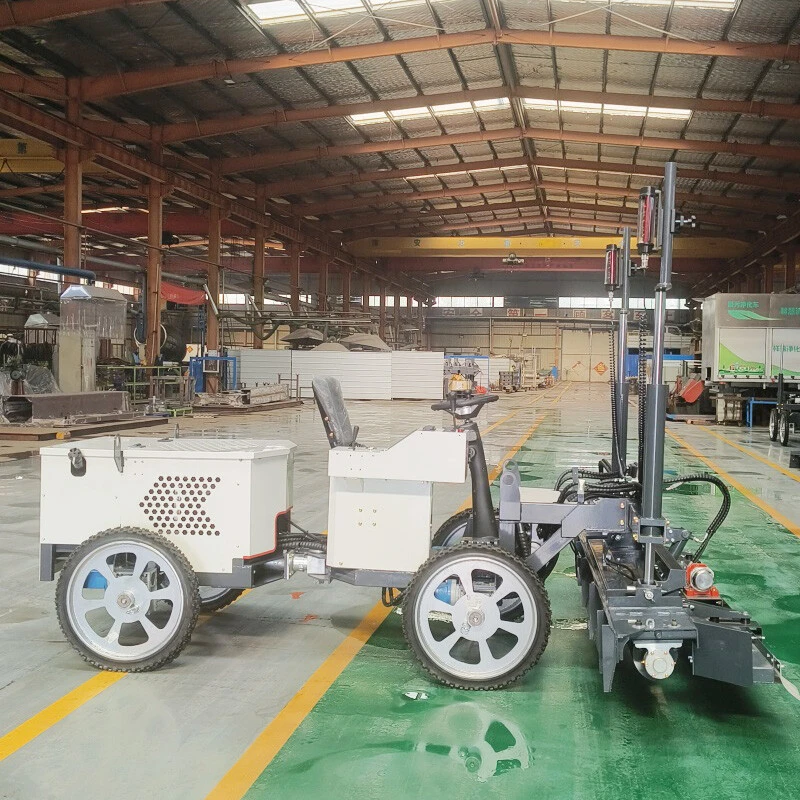

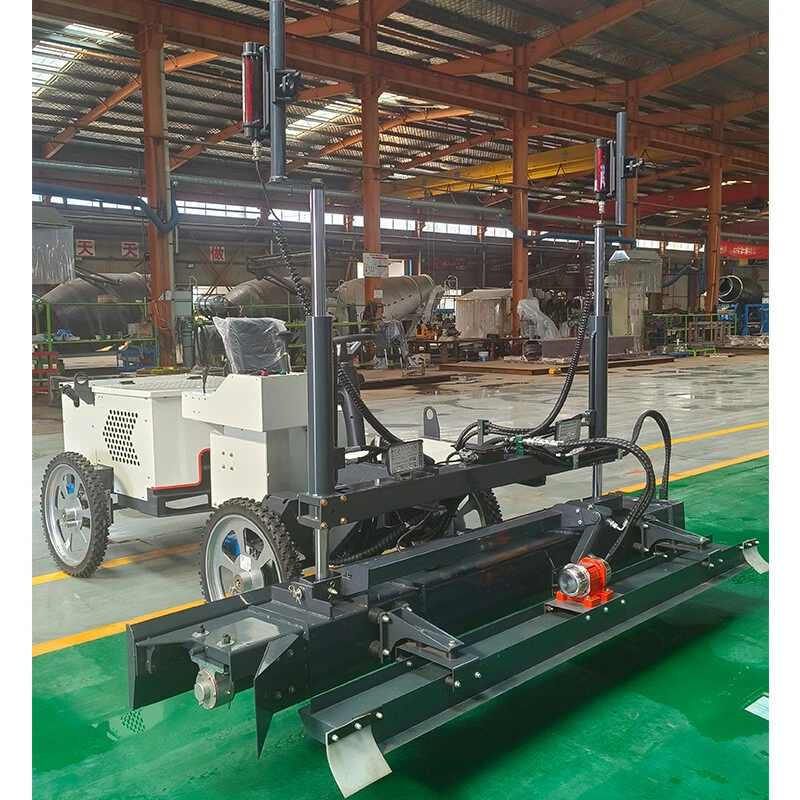

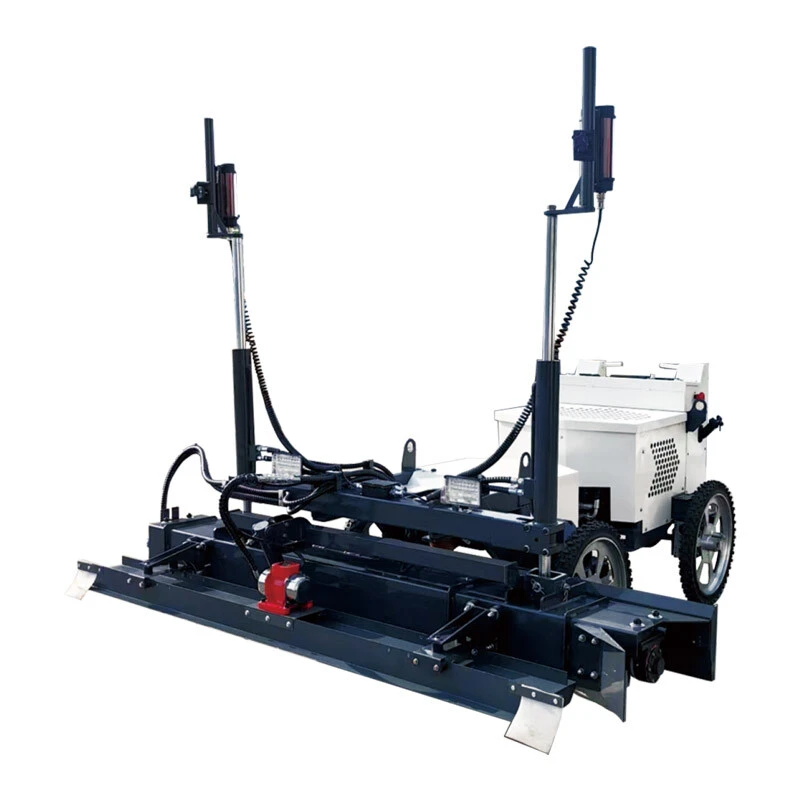

Laser Leveling Machine-30D

PRODUCT DESCRIPTION


The laser leveling machine can automatically complete the levelingoperation without manualintervention, saving labor costs, lt hashigh precision, which can reach the millimeter level and can meet therequirements of most proiects,lt has high speed and can completelarge-area leveling operations in a short time, improving workefficiency. lt has good stability and can operate stablyfor a long timereducing maintenance costs.


PRODUCT FEATURES

  • Honda imported engine

  • Varaulic auger paving reduces manpower

  • Leveling width 3000mm,high working efficiency

  • Leveling thickness 50-300mm, easy to adjust


TypeXR4W-30D Laser Leveler
PowerModel numberHonda 690 engine/USA Paragon engine (iteration)
Power (output)13KW/22.8KW
Laser SystemLaser delivery systemSwiss Leica Transmitter
Laser reception systemLeica Receiver Switzerland
Laser control systemsAmerican Danfoss laser control system
Laser control system methodAutomatic laser microsystem control for automatic leveling
Leveling SystemSuspensionstationary
Width of vibration plate3000mm
Leveling thickness50-300mm
Vibratory force2000N
Vibration motor speed3600rpm
Travel SystemTravel driveLow-speed high-torque reducer + hydraulic drive motor
Hydraulic systemDanvers, USA
Intelligent Walking Control SystemOne-touch speed control
Travel modeElectronically controlled servo system for automatic travel
Travel speed0-55m/min
Working speed4m-20m/min (speed adjustable)
Paving methodHydraulic cage paving
Walking TiresSolid non-slip tires
Size WeightBody size3600X3450X1750mm
Body weight1000kg
