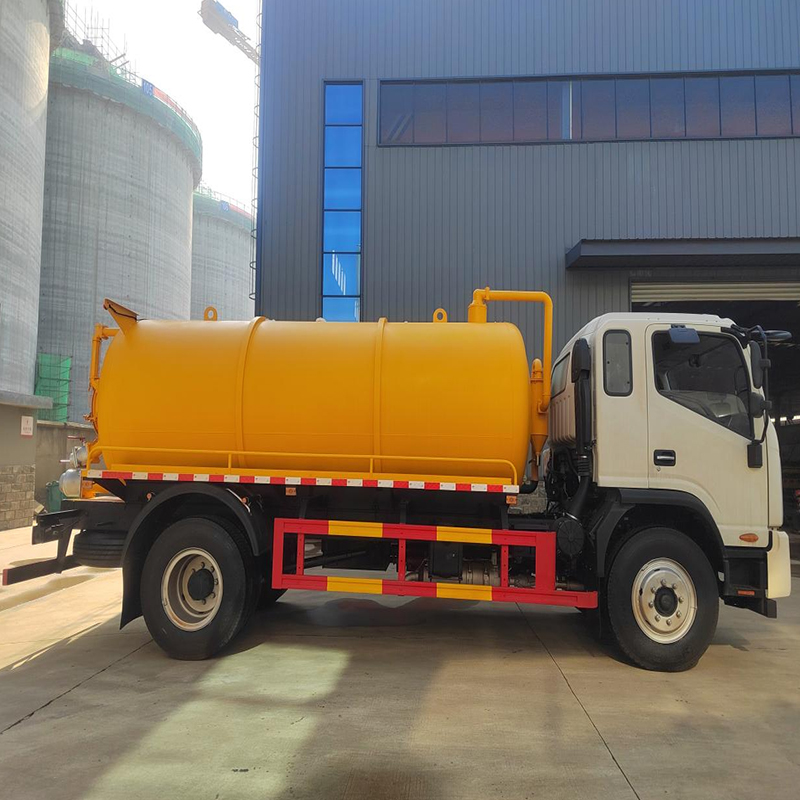

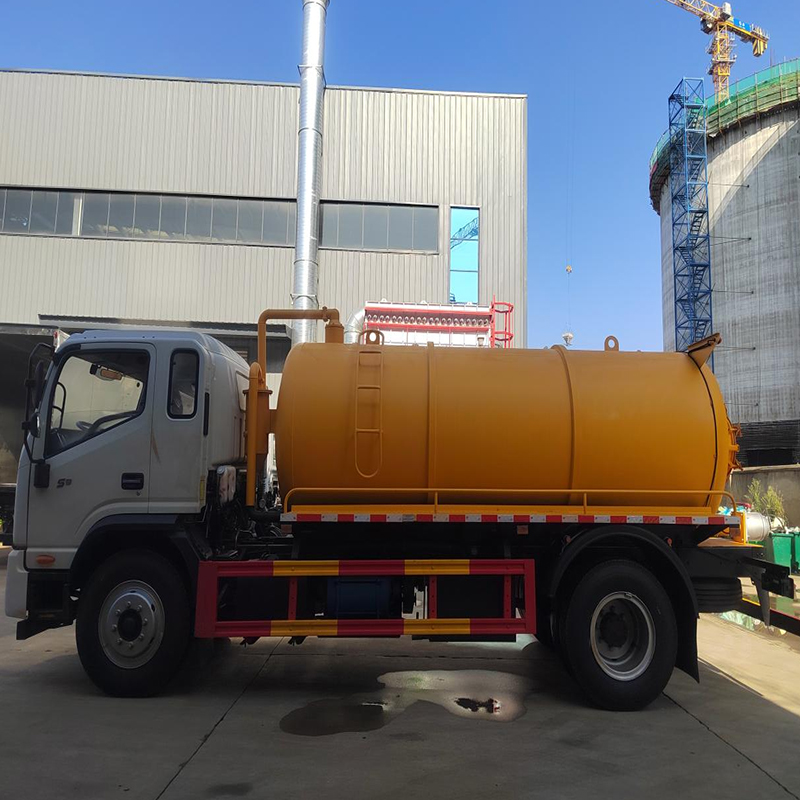

JAC Sewage Suction Truck

Chassis configuration:

Jianghuai Junling S9 Huanwei special chassis, Yuchai 220 horsepower, 8 Fast with synchronizers, 1000R20 18PR radial steel tires, 160L fuel tank, double-layer frame, central locking, electric glass, remote control button, multifunctional steering wheel, Songzhi air conditioning, airbag seats, leather seat material with perforations (all), heating mirror, LED combination headlights, exhaust brake, OBD.

Upper configuration:

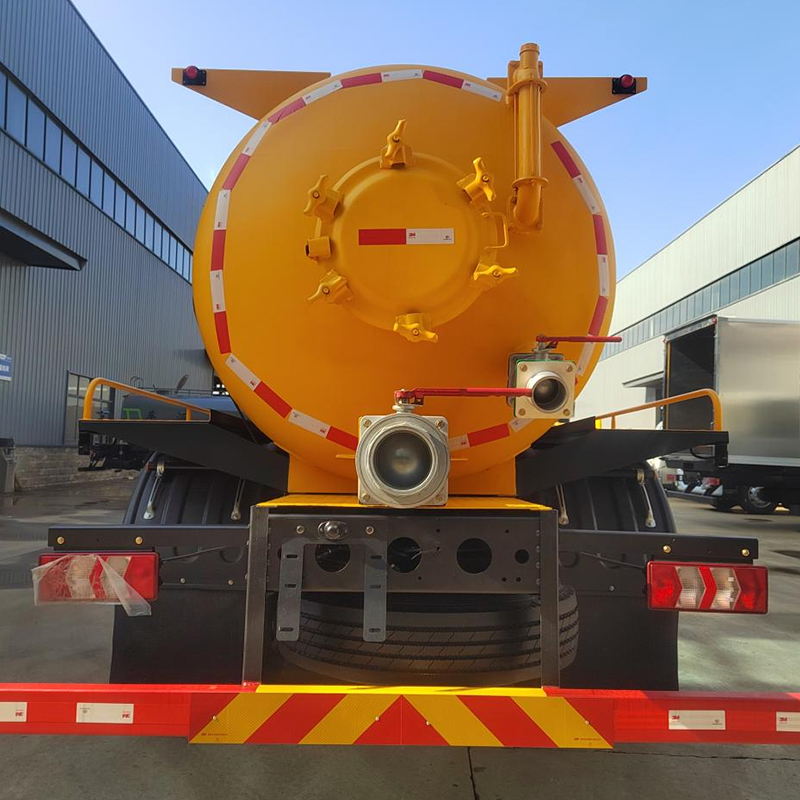

The tank has a capacity of approximately 9 cubic meters, with a cylinder body and front and rear heads of 4.75mm, a half moon shaped partition of 3.5mm, and is equipped with an SK-15 water circulation pump. The tank is cylindrical in shape, with a back cover diameter of approximately 55.8cm (12 inches) and a diameter self flow valve. A DN150 (6 inches) self flow valve is installed at the bottom of the back cover of the tank, and a DN100 (4 inches) self flow valve is installed for the suction pipe diameter.
