Main technical parameters

Configuration Description

Basic functions and safety configuration

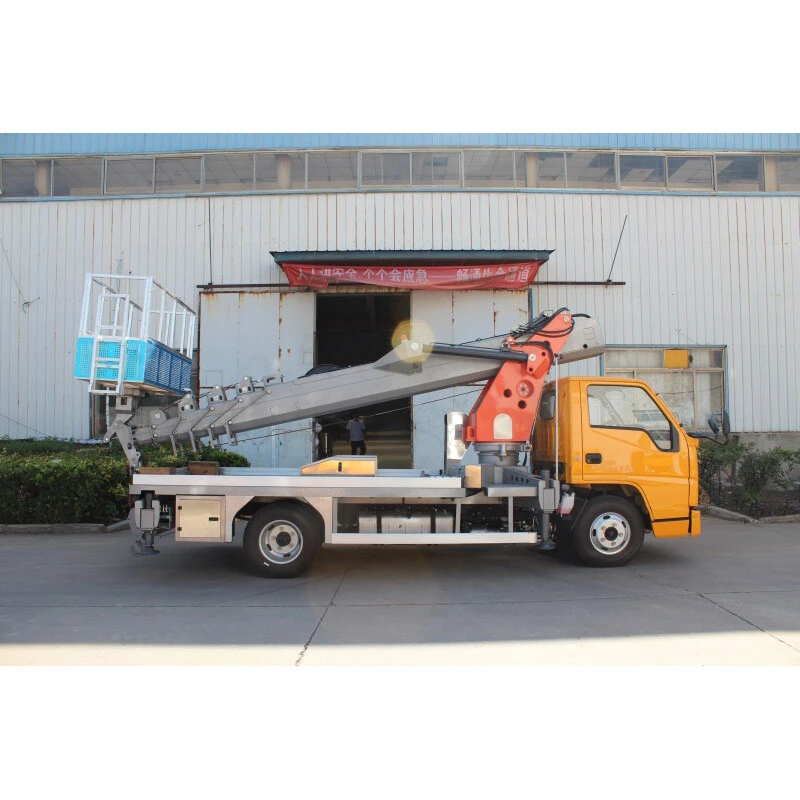

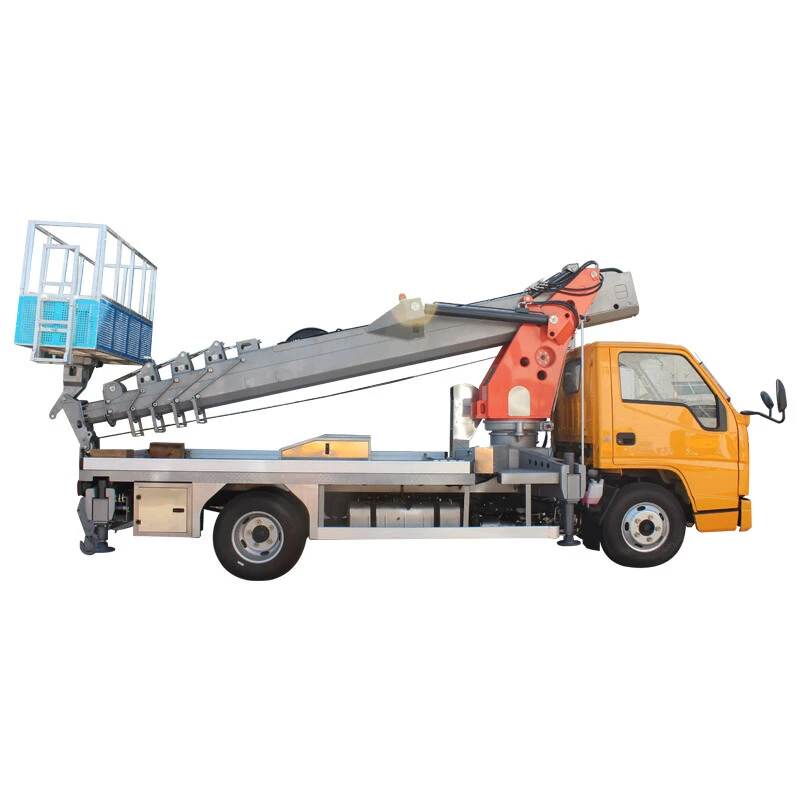

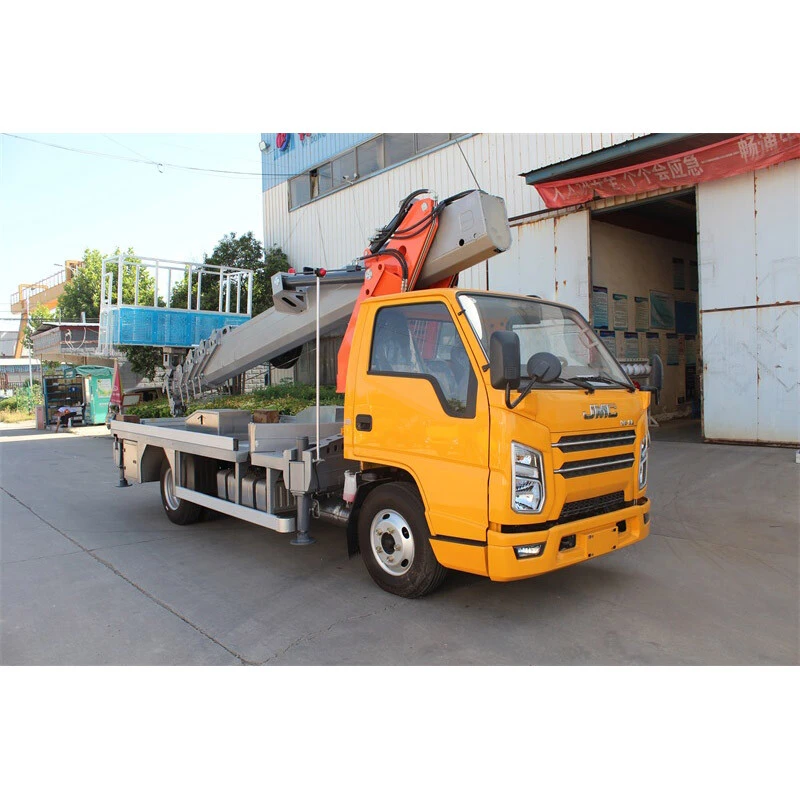

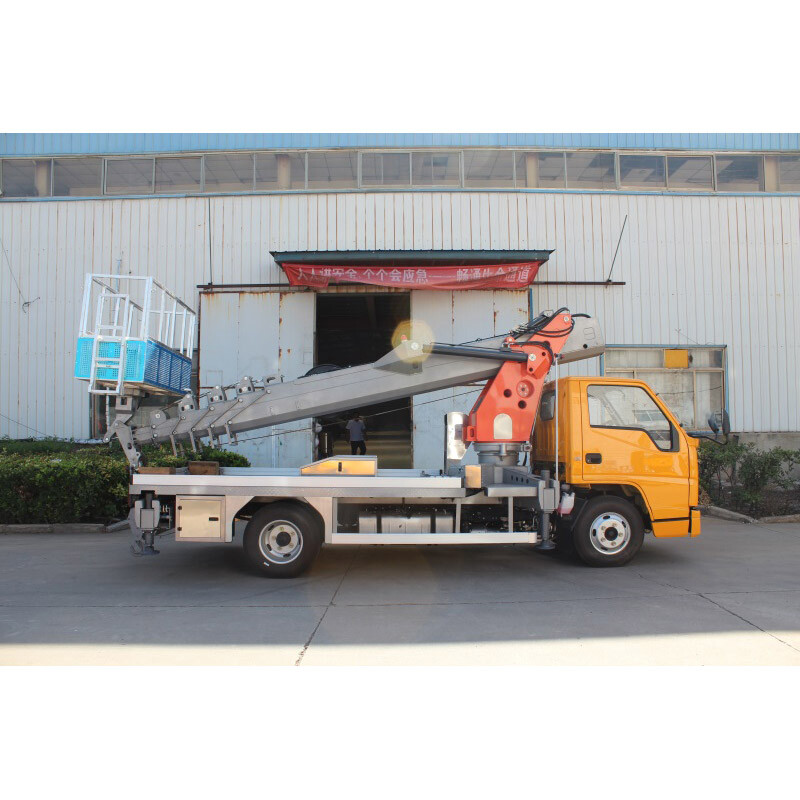

Basic functional safety configuration of 25M Aerial Platform Truck: The working vehicle can realize the platform load of 200kg, the maximum working height of 25m, the maximum working range of the boom up to 15m, the working platform automatic leveling.

The main features of introduction

25M Aerial Platform Truck is a mature product produced by SHANDONG XIANGJIN INTERNATIONAL TRADE CO.LTD. It integrates a variety of functions in one, with leading international products of the same level in parameters and performance. Its main features are:

1, blue brand car

The maximum working height of 25M Aerial Platform Truck is 25m. It adopts new high-strength ultra-thin steel. The vehicle design is lightweight. The weight of the vehicle is less than 4.5t (4.495t) and the length is less than 6m (5.995m). Compared with yellow brand vehicles, it has the following advantages:

(1)Low driving license requirements: blue car C1 can drive according to the above, operators can drive by themselves;

(2)a wide range of traffic: blue car can pass in the urban area, yellow car into the urban area to apply for a permit;

(3)low operating costs: the tolls and insurance premiums of blue brand cars are less, and blue brand cars do not need to operate certificates;

(4)Flexible driving: small size, flexible driving, easy to operate.

2, low fuel consumption, small vehicle size

(1)Low fuel consumption: According to the Automobile association report, every 10% reduction in vehicle weight, fuel efficiency can be increased by 6%-8%, and fuel consumption is reduced by 7%; The weight of the vehicle is reduced by 100kg, the fuel consumption of 100 kilometers can be reduced by 0.3L ~ 0.6L, the car is 40% lighter than the traditional model, the fuel consumption of 100 kilometers is reduced by 1.2L ~ 2.4L, and the economy is improved;

(2)The vehicle has the advantages of compact structure, small size, low center of gravity, adaptability to narrow workplaces, flexibility and high stability.

3、Good working performance, wide range of work

25M Aerial Platform Truck The maximum working height is 25m, the maximum working range is 15m, and the rotary table can be rotated in full range for arbitrary operation. The operation is simple, easy to operate, the execution of the action is fast, the operation range is large, and the operation parameters are leading the international products of the same category. The

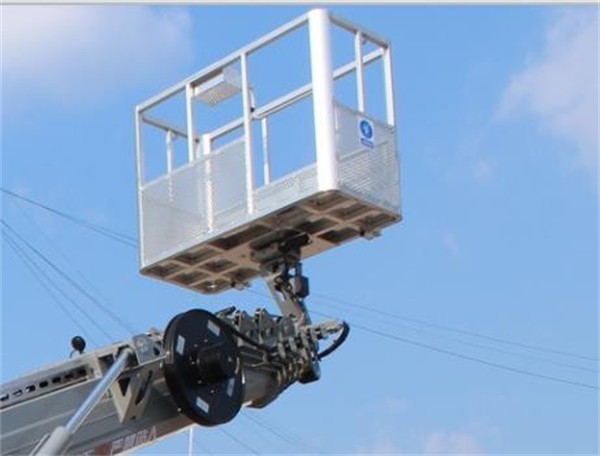

car adopts six arm, the arm body synchronously telescopic, stepless speed regulation, superior operation performance; The working platform is rear, and the ladder is set on the walking board, which is convenient for personnel to get up and down. The working platform is equipped with lighting, which is convenient for night operation.

4、Flexible and convenient operation, rotary table ±360° unlimited Angle rotation operation

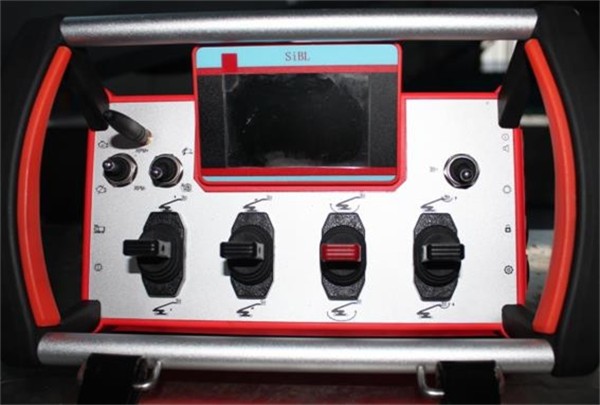

Rotary table hydraulic handle control, the working bucket can choose electric control operation, remote wireless remote control operation, can remote engine point, flame out, remote control throttle size; Improve work efficiency, leg throttle automatic acceleration; The maximum operating range is 12m, the rotary table is ±360°, the operation is simple. Wireless remote control technology, the operator can work in a narrow working environment, flexible and convenient operation, no blind area, better working vision, in addition to avoid the operator to endure cold and hot weather, you can choose the appropriate location to complete the operation; Single hand can complete all the action compound operation.

5、High  reliability

In the process of product research and development, all structural safety check, stability analysis, reliability verification and other methods are used, which can make the product stable and reliable within the scope of operation; In addition to the frontal load test before leaving the factory, 1.25 times the coefficient of dynamic load and 1.5 times the coefficient of static load test of over-calibrated load are also carried out. To ensure the safety and stability of the product under all working conditions, suitable for open operation under all working conditions. The main control components and key transmission parts are all international well-known brands, with stable quality and high reliability.

6、Superior safety performance

On and off interlock device, emergency electric pump, two-way hydraulic lock, vehicle level, etc., to ensure the safety of the vehicle operation. The bidirectional balance valve prevents the working arm from falling automatically, ensures the smooth movement of the arm body and the working bucket, and the equal volume cylinder leveling system automatically flattens.

7、Smooth action

(1)Load-sensitive electro-hydraulic proportional control, stepless speed regulation, smooth work; Reduce the impact of the action;

(2)The bidirectional balance valve is used to ensure the smoothness of the boom when it starts and stops;

(3)The hinge point arrangement is reasonable, the boom amplitude has no pressure mutation, the pressure changes evenly, and the action is stable.

8、High-end atmosphere, color fashion

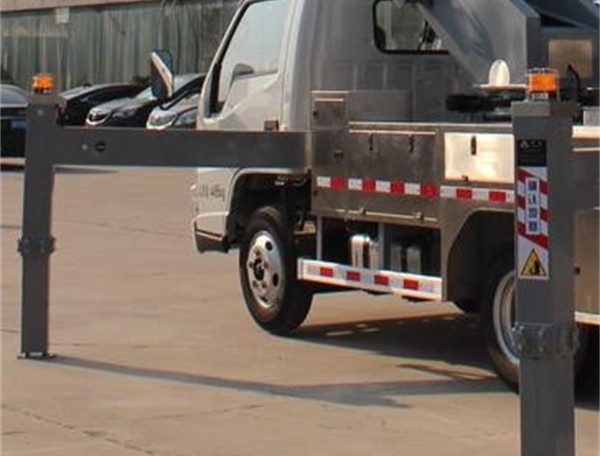

Square box legs as solid as rock, durable stainless steel working platform, polygon turntable structure, clean appearance, eternal elegant product shape, highlighting a sense of fashion.

9. Integrated into ergonomics, it makes people pleasant and pleasant when operating

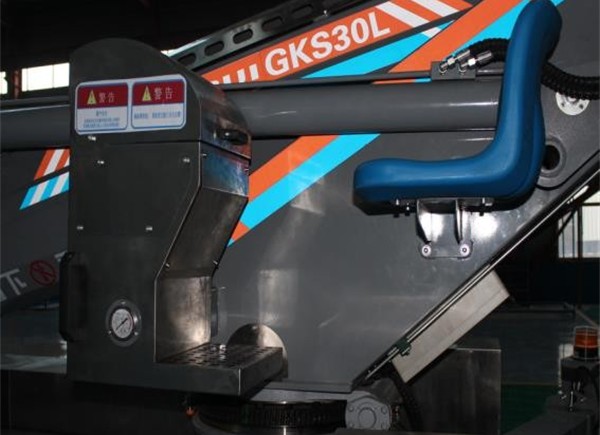

The control box and comfortable seats are set at the turntable, the hydraulic handle is operated accurately, the design of the control box interface takes into account people's visual, tactile and action habits, the layout is reasonable, the shape is beautiful, the combination of graphics and text is simple and easy to understand, the operation is convenient, and the operation makes people happy and pleasant.

The advantage of details examples

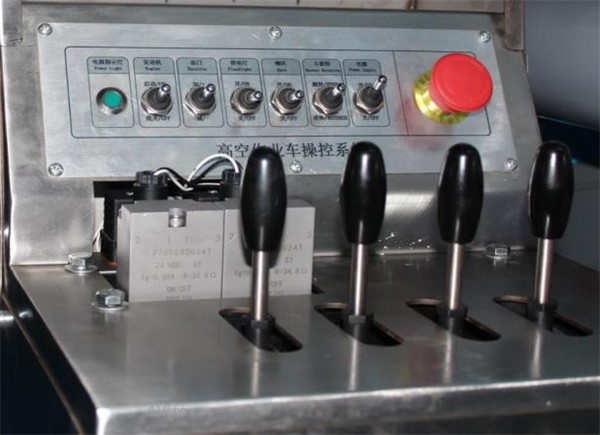

Rotary table hydraulic handle control, accurate, simple and comfortable.	Operation hopper electric control operation, convenient for construction personnel to operate.
