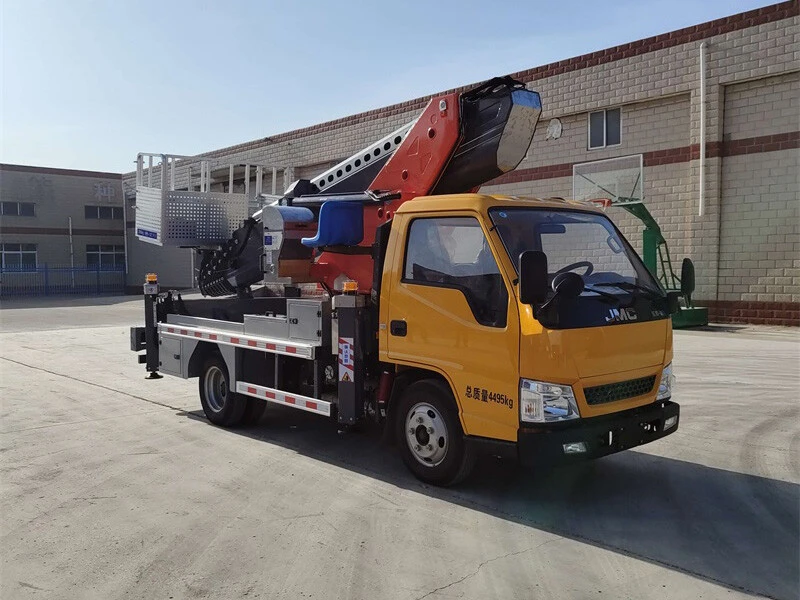

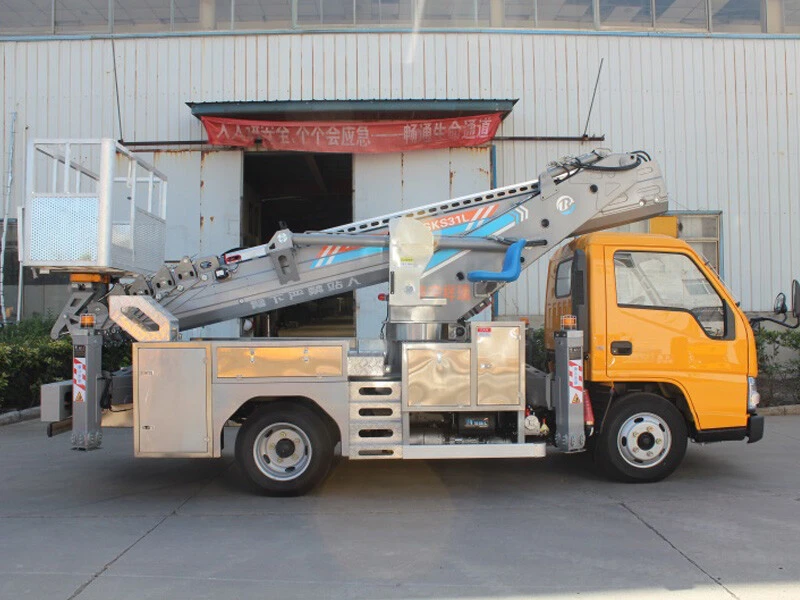

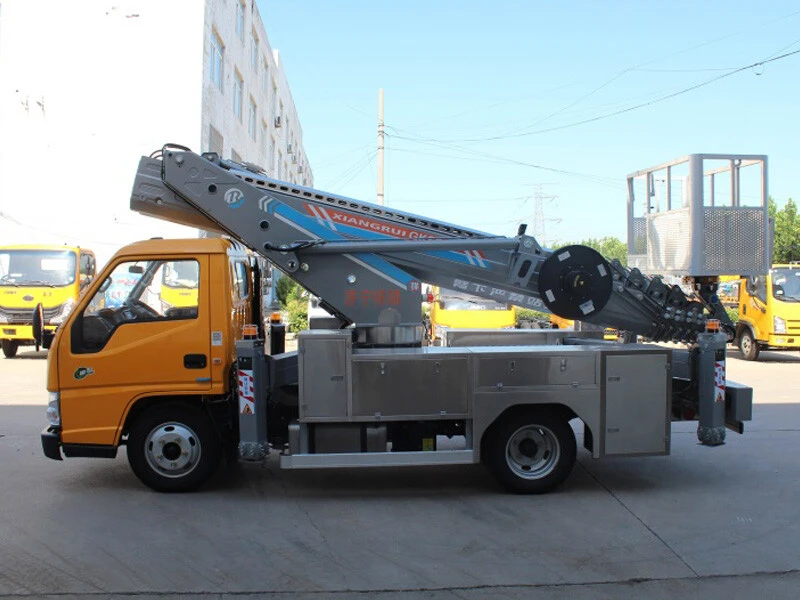

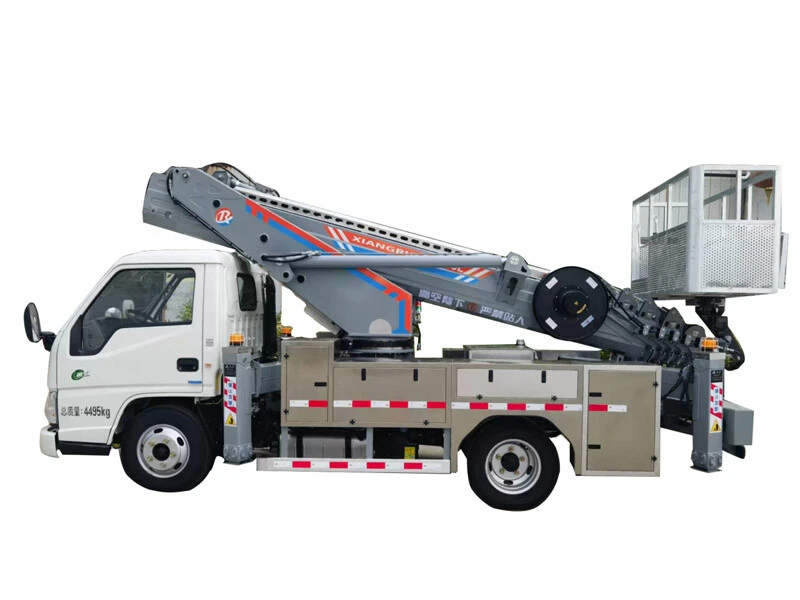

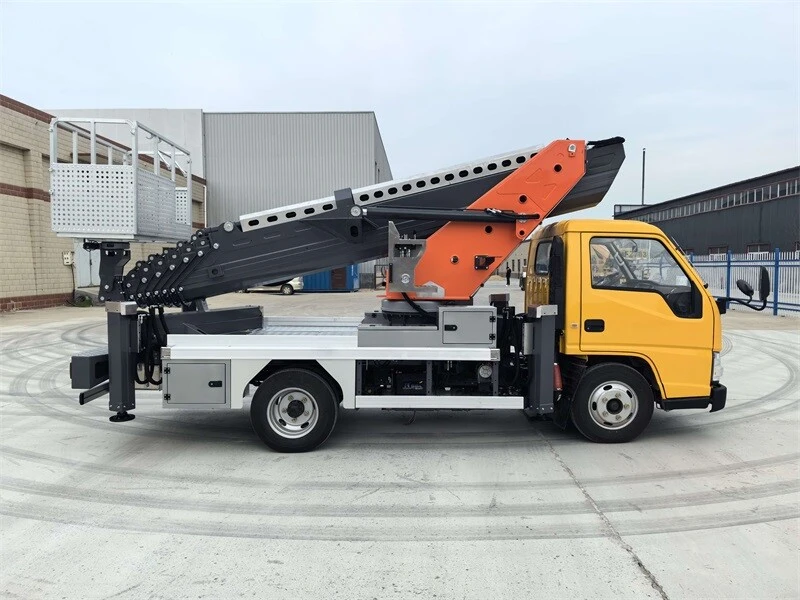

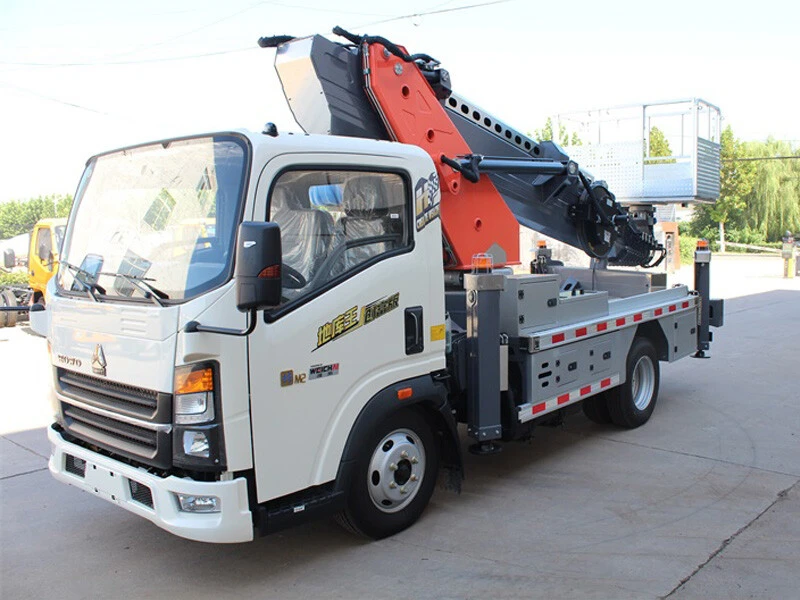

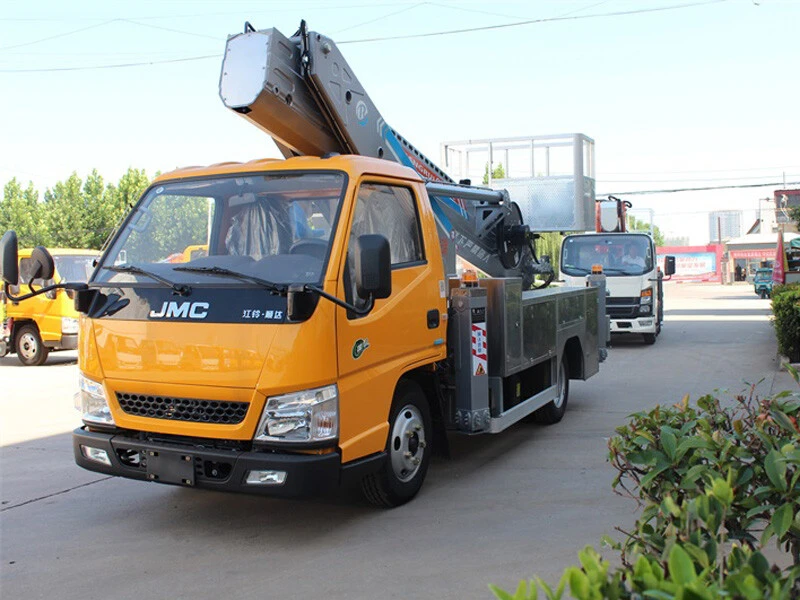

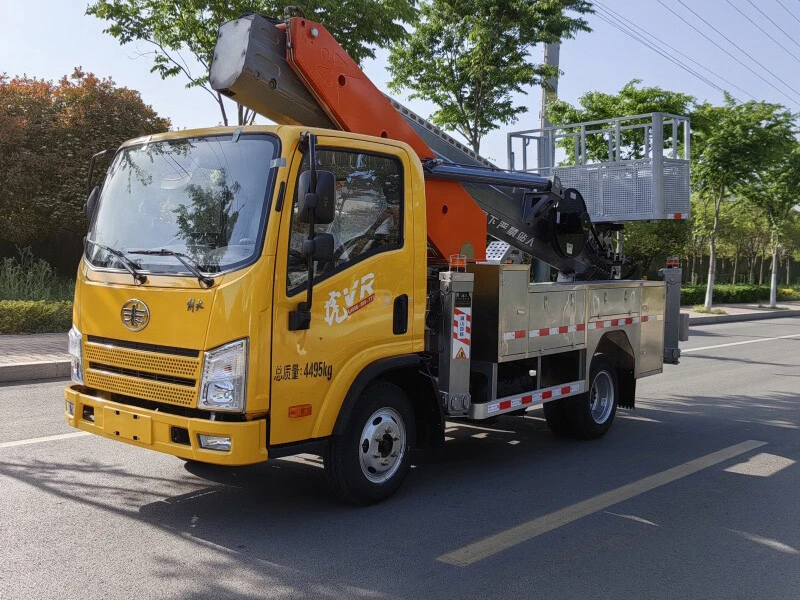

3、The 30M aerial work vehicle is a mature product produced by SDXJ Engineering Machinery Co., Ltd., which integrates multiple functions and leads the international market in terms of parameters and performance. Its main characteristics include:

4、1. Blue Label Car

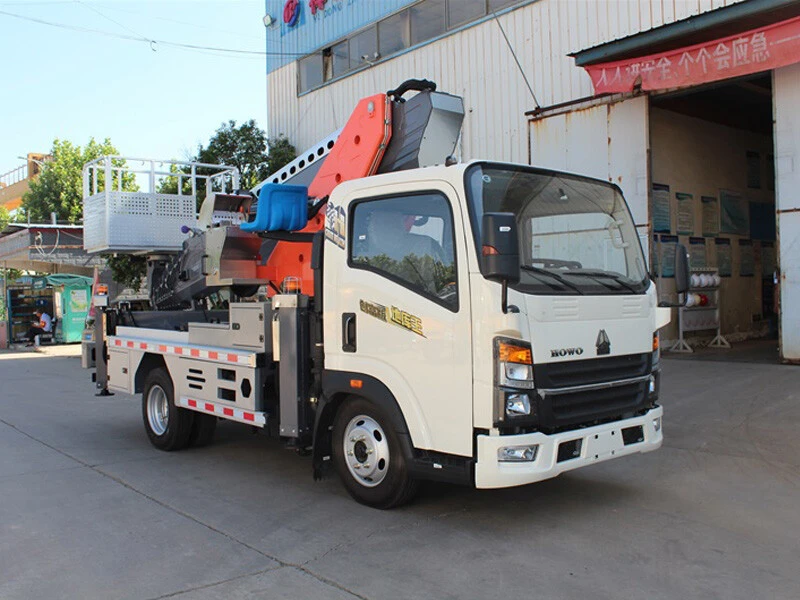

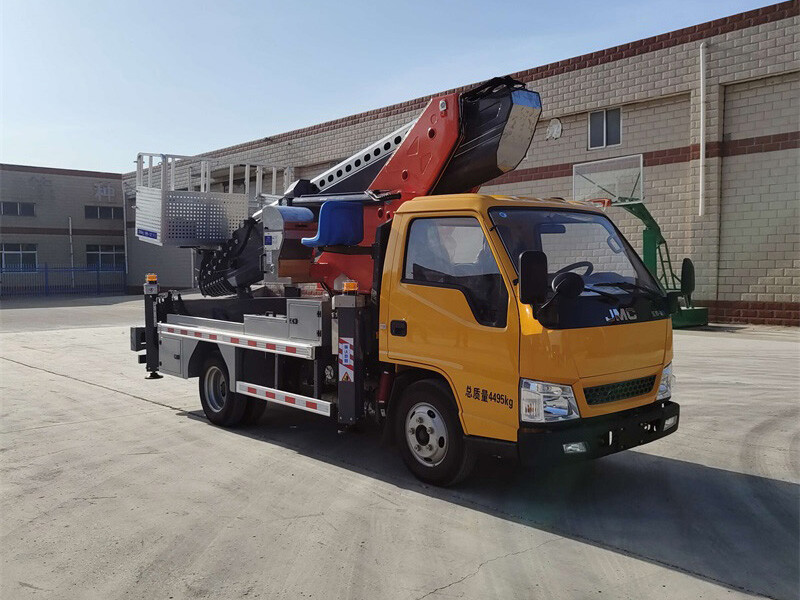

5、The maximum working height of the 30M high-altitude work vehicle is 30m, using new high-strength ultra-thin steel. The vehicle design is lightweight, with a weight of less than 4.5t (4.495t) and a length of less than 6m (5.995m). In accordance with laws, regulations, and industry standards, the blue brand product's various operational performance is maximized, and compared to yellow brand vehicles, it has the following advantages:

6、(1) Low driver's license requirements: Blue license vehicles with C1 or above license plates can be driven, and operators can drive on their own;

7、(2) Wide range of traffic: Blue license cars can pass through the city, while yellow license cars need to obtain a pass when entering the city;

8、(3) Low operating costs: Blue brand cars have low tolls and insurance premiums, and blue brand cars do not require an operating certificate;

9、(4) Flexible driving: compact body, flexible driving, easy to operate.

10、2. Low fuel consumption and small vehicle size

11、(1) Low fuel consumption: According to the Automobile Association, every 10% reduction in vehicle weight can increase fuel efficiency by 6% -8% and reduce fuel consumption by 7%; For every 100kg reduction in vehicle weight, the fuel consumption per 100 kilometers can be reduced by 0.3 L to 0.6 L. This car is 40% lighter than traditional models, and the fuel consumption per 100 kilometers is reduced by 1.2 L to 2.4 L, improving its economy;

12、(2) The entire vehicle has a compact structure, small size, low center of gravity, suitable for narrow workplaces, flexible mobility, and high stability.

13. Good job performance and large scope of work

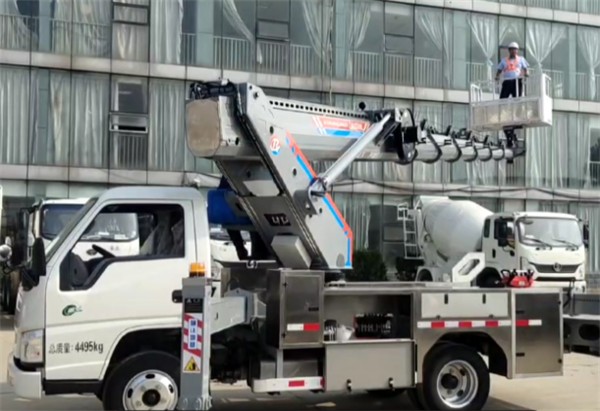

The maximum operating height of the 30M high-altitude work vehicle is 30m, and the maximum operating range is 17m. The turntable can be fully rotated for any operation. The action is simple, easy to operate, performs the action quickly, has a wide range of operations, and the operation parameters are leading in similar international products. This car adopts a six section arm, with synchronous extension and contraction of the arm body, stepless speed regulation, and superior operational performance; The work platform is located at the back, and a ladder is installed on the walking platform to facilitate personnel getting on and off. The work platform is equipped with lighting for convenient night work.

14. Flexible and convenient operation, with ± 360 ° unrestricted rotation of the turntable

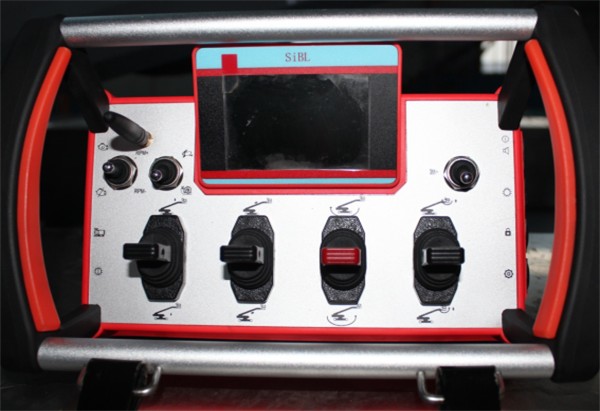

The turntable is operated by a hydraulic handle, and the worktable can be operated by electronic control. The remote wireless remote control can be used to remotely start and stop the engine, and to remotely control the throttle size; Improve work efficiency and automatically accelerate the leg accelerator; The maximum operating range is 12m, and the turntable rotates at an unrestricted angle of ± 360 °, making the operation simple. Wireless remote control technology allows operators to work in a narrow working environment, with flexible and convenient operation, no blind spots, and better work vision. Additionally, it prevents operators from enduring severe cold and hot weather, and allows them to choose a suitable location to complete the operation; One hand can complete all action composite operations.

15.High reliability

16. During the product development process, methods such as safety verification, stability analysis, and reliability verification are used to ensure stable and reliable product performance within the scope of operation; Before leaving the factory, in addition to the rated load test, a dynamic load test with a factor of 1.25 and a static load test with a factor of 1.5 were also conducted for the rated load. Ensure the safety and stability of the product under all working conditions, suitable for open operation under all working conditions. The main control components and key transmission components are all from internationally renowned brands, with stable quality and high reliability.

13. Superior safety performance

The interlocking device for getting on and off the vehicle, emergency electric pump, bidirectional hydraulic lock, and vehicle level jointly ensure the safety of the vehicle's operation. The bidirectional balance valve prevents the working arm from automatically falling, ensuring smooth movement of the arm body and the working platform. Additionally, an equal volume oil cylinder leveling system is used for automatic leveling.

14. Smooth movement

(1) Load sensitive electro-hydraulic proportional control, stepless speed regulation, stable operation; Reduce the impact of actions;

(2) Adopting a bidirectional balance valve to ensure the smoothness of the boom's start stop action;

(3) The arrangement of hinge points is reasonable, there is no sudden change in pressure when the boom changes amplitude, the pressure changes evenly, and the action is stable.

15. High end atmosphere, stylish color scheme

The square box shaped legs are as sturdy as a rock, and the stainless steel work platform is durable with a polygonal turntable structure. The appearance of the product is concise, clean, and timeless, showcasing a sense of fashion.

9. Integrating ergonomics to create a pleasant and enjoyable operation

The turntable is equipped with a control box and comfortable seats. The hydraulic handle is precise in operation, and the design of the control box interface takes into account human visual, tactile, and behavioral habits. The layout is reasonable, the design is beautiful, the graphics and text are combined, simple and easy to understand, easy to operate, and the operation is pleasant and pleasant.

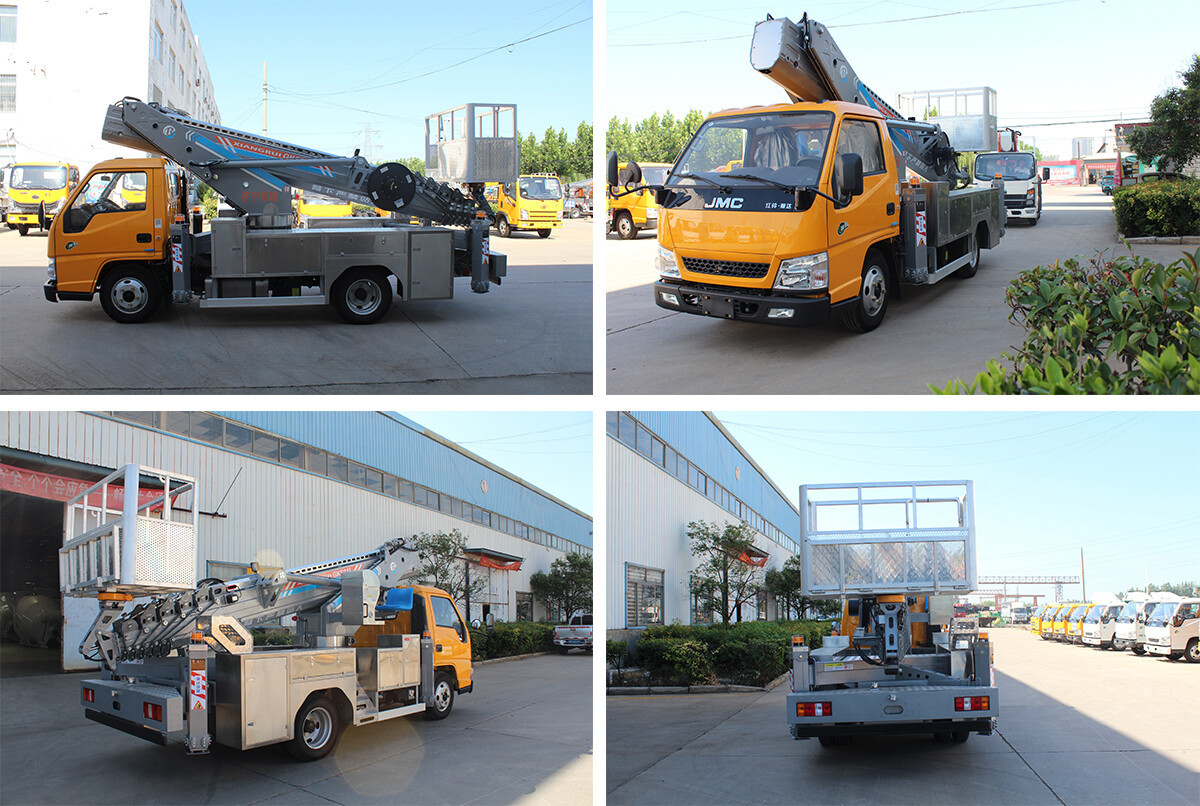

Examples of advantages and details
