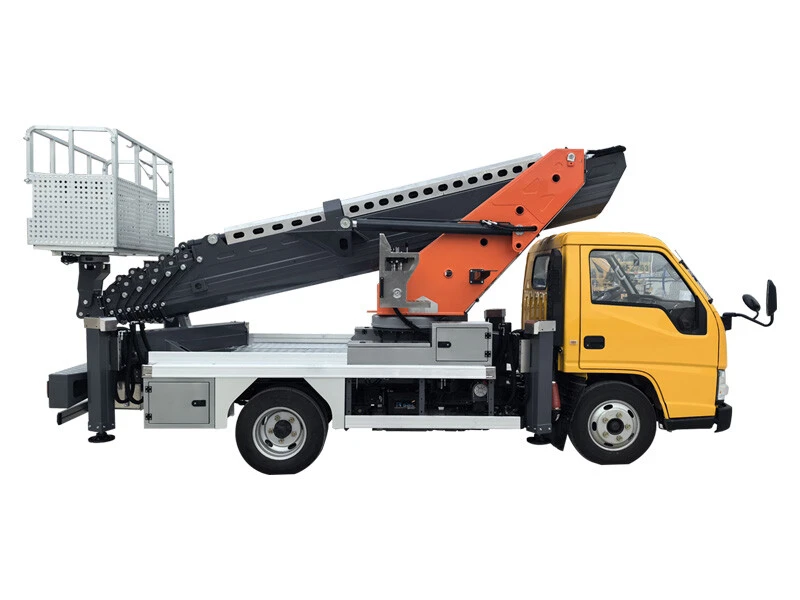

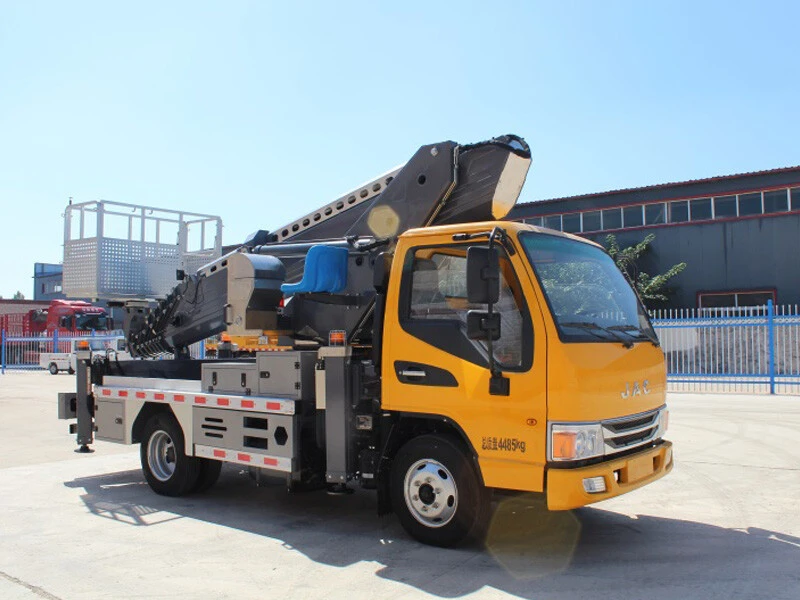

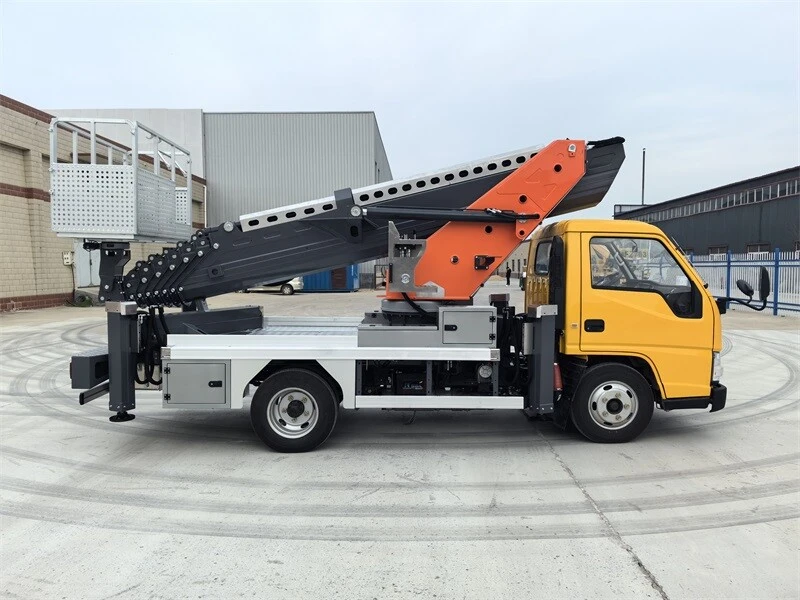

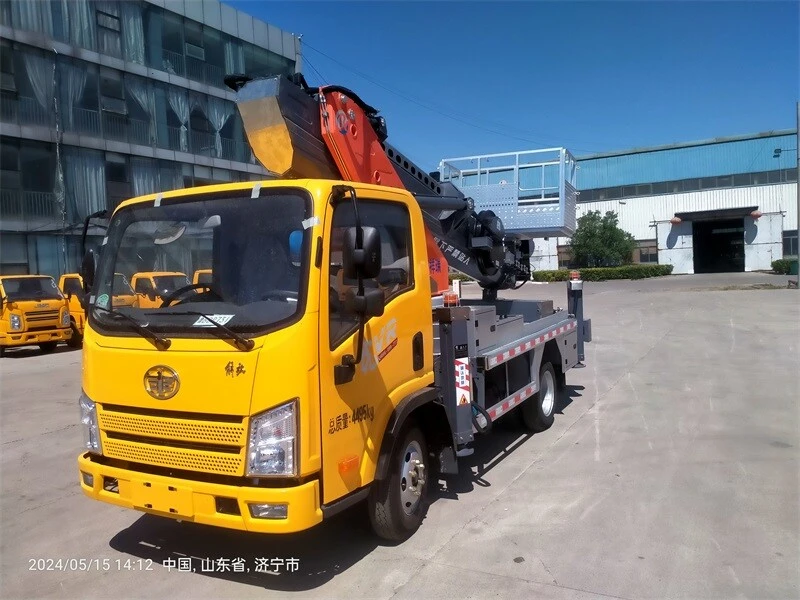

33m Aerial work platform truck

Product Description

33m aerial work platform truck with various brands of chassis to choose from. The boom has 8 sections, 7 of which are synchronously retractable. It adopts a full chain retractable arm, which is smooth and safe, with more stable performance. It has upgraded 18-rib boom, Baosteel 960 high-strength plate, integrated support beam, and external telescopic cylinder. The outriggers adopt an "X"-shaped lightweight steel frame structure, which is resistant to twisting and not easy to deform. The horizontal and vertical spans are 5560/5460mm, and soft leg protection is installed.


Product application scope

Aerial work platform trucks are widely used in electricity, street lights, municipal administration, gardening, communications, airports, shipbuilding (repair), transportation, advertising, photography, and other aerial work fields.


ChassisJiangling Shunda/FAW Jiefang/SINOTRUK HOWOBraking methodOil brake/air brake
Body size5995*2060*2780/2890mmNumber of front tires2
Front and rear overhang1075/1810Number of rear tires4
Wheelbase2800Total mass4495KGCab2/3 people
Temperature RegulationAir conditioningSwivel supportMa On Shan / KesenEmission standardsNational VI
Maximum driving speed100Km/hBoom typeEight-section synchronous telescopic boomRated load of working platform200Kg
Maximum operating height33mMaximum operating range16.5mTurntable rotation360°
Working range at maximum working height6mHydraulic motor1AmplitudeTwin Cylinder
Working height at maximum working range28mOutrigger span (vertical and horizontal)5560/5460MMUpper armBaosteel S960E
Basket size1800*700*1000mmOutriggersX-type outriggers, 2 horizontal sections, 1 vertical section
Boom heave angle-10-78° (relative to horizontal plane)Hydraulic lock4 outriggers with two-way hydraulic locks
Approach/departure angle19/13°How to operateWireless/remote control/electric manual emergency operation
Leveling formHydrostatic automatic levelingControl SystemHydraulic cylinder leveling
