Product features
1. Strong loading and unloading capacity. The mixing drum has a large geometric volume and a large installation angle.
2. Even mixing without segregation;
3. High wear resistance. Wear-resistant alloy steel materials are selected and welded automatically;
4. It complies with national emission standards and can be registered and driven on the road nationwide;
5. Beautiful appearance, high-end and comfortable cab;
6. Strong escape ability, equipped with differential lock;
7. Applicable to construction sites, water conservancy and other engineering construction;

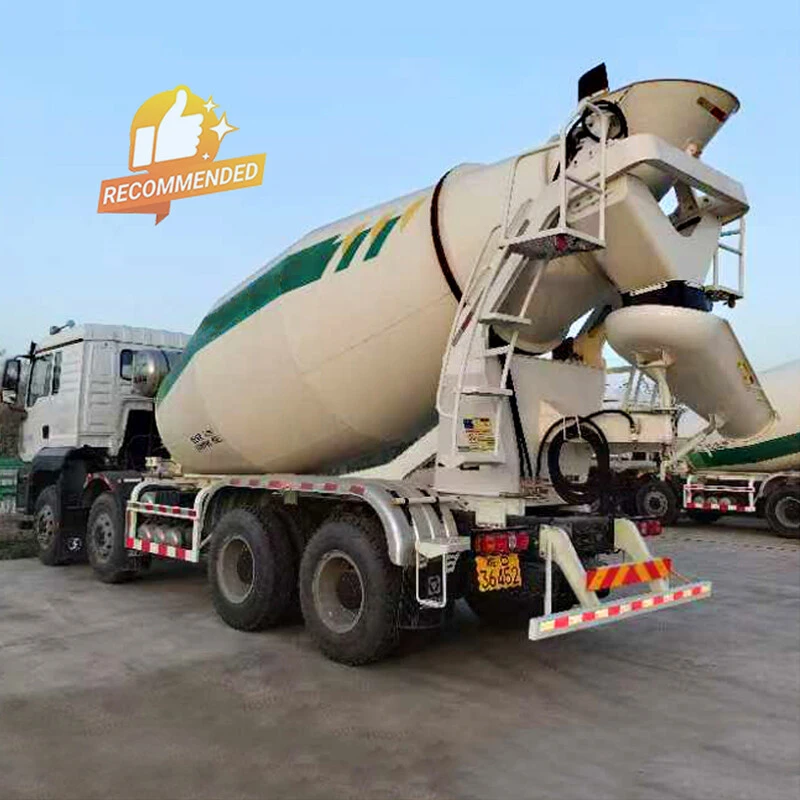

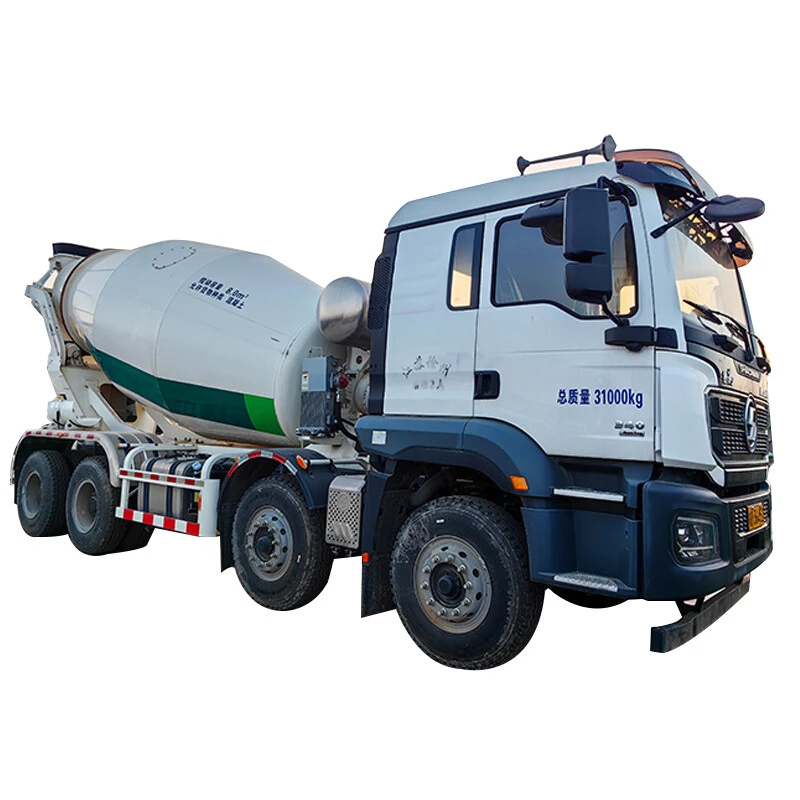

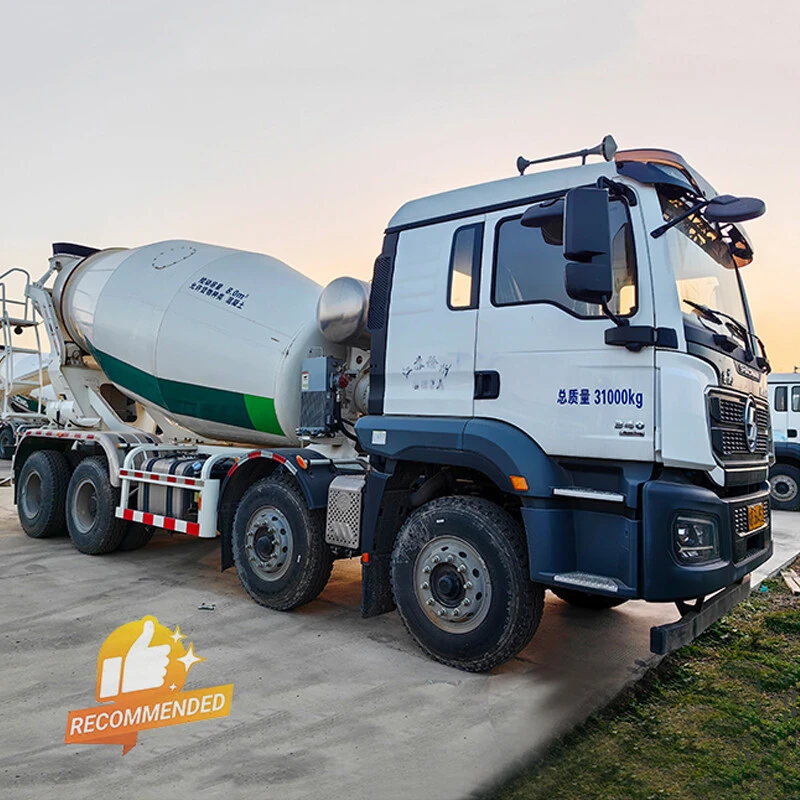

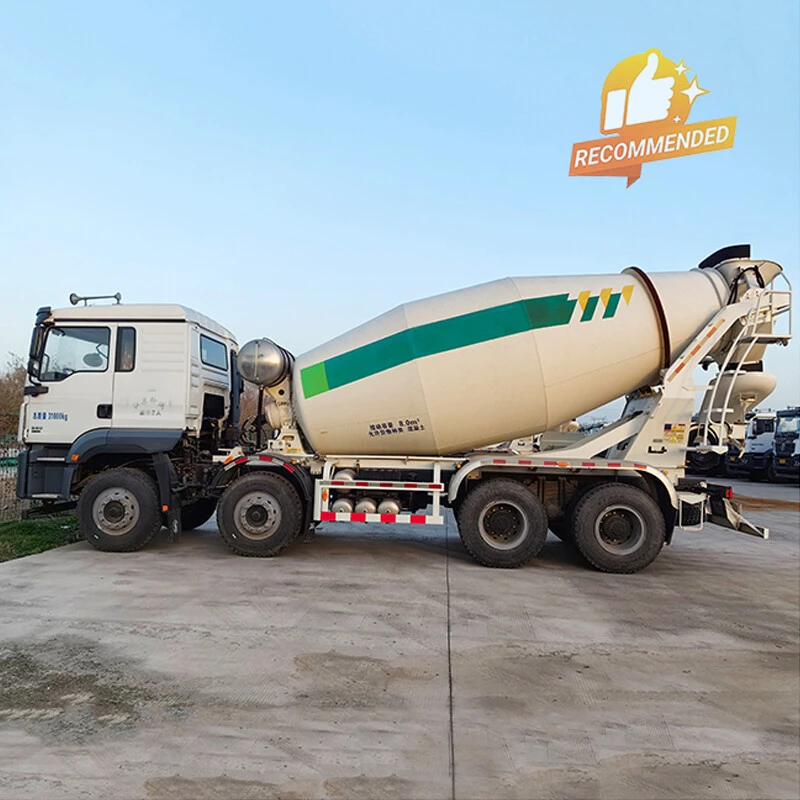

| Basic Information | 12m3 Concrete Mixer Truck |
| Brand/Origin | SHACMAN/China |
| Chassis parameters | Engine | Brand | Weichai |
| Model/Power | WP8.340E51/250kW |
| Type | In-line, direct injection, water-cooled, four-stroke, supercharged and intercooled, electronically controlled high-pressure common rail |
| Displacement | 7800ml |
| Emission standards | National V |
| Chassis | Brand | Shaanxi automobile |
| Model | SX5310GJBMB6 |
| Gearbox | Brand | Fast |
| Model | 10JSD120T |
| Number of gears | 10 forward gears, 2 reverse gears |
| Front axle | Model | MAN technology 5.5T (Hande) |
|
| Drive axle | Model | 16T HDS Dual-Stage Casting Axle - 5.73 |
| Frame | Brand | Shaanxi Automobile |
| Model | 850×300(8+5)mm |
| Steering system | Type | Φ110 Circulating ball type |
| Front suspension | Non-independent longitudinal leaf spring suspension 10/10 |
| Rear suspension | Non-independent longitudinal leaf spring balance suspension 12 |
| Braking system | Brake type | Front and rear drum |
| Parking brake type | Rear axle spring brake |
| Auxiliary brake | Engine exhaust brake |
| ABS | 4-channel ABS anti-lock brake system |
| Tire | 11.00R20 |
| Wheelbase | 1800+3000+1400 |
| Fuel tank | 300L aluminum alloy fuel tank |
| Vehicle parameters | Maximum total mass | 31000Kg |
| Announced curb weight | 13400Kg |
| Announcement Churn Capacity | 8.0m³ |
| Announcement Dimensions | 10100×2525×3965 |
| Rotation speed | 0~14 r/min |
| Feeding speed | ≥3 m³/min |
| Discharging speed | ≥2 m³/min |
| Discharge residual rate | ≤0.5 |
| Tank parameters | Geometric volume | 16.8m³ |
| Tank length | 5596mm |
| Tank diameter | 2280mm |
| Drivetrain | Oil pump brand | PMP |
| Motor Brand | ARK |
| Reducer brand | TOP |
| Additional Information | Water tank capacity | 380L |
| Remark | Efficient and reliable V7 new generation upper body matching, efficient - mixing drum continuous trace + large lift angle + arc blade design, the drum "fast feeding, uniform mixing, clean unloading"; reliable - flexible connection frame technology + double-layer structure blade technology + professional wear-resistant liner application long-life hopper technology matching application. |
