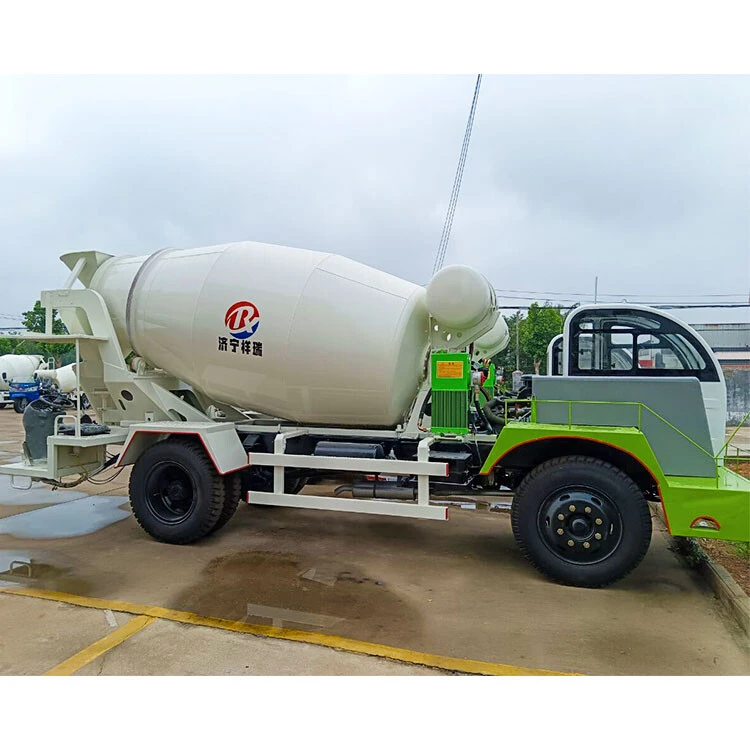

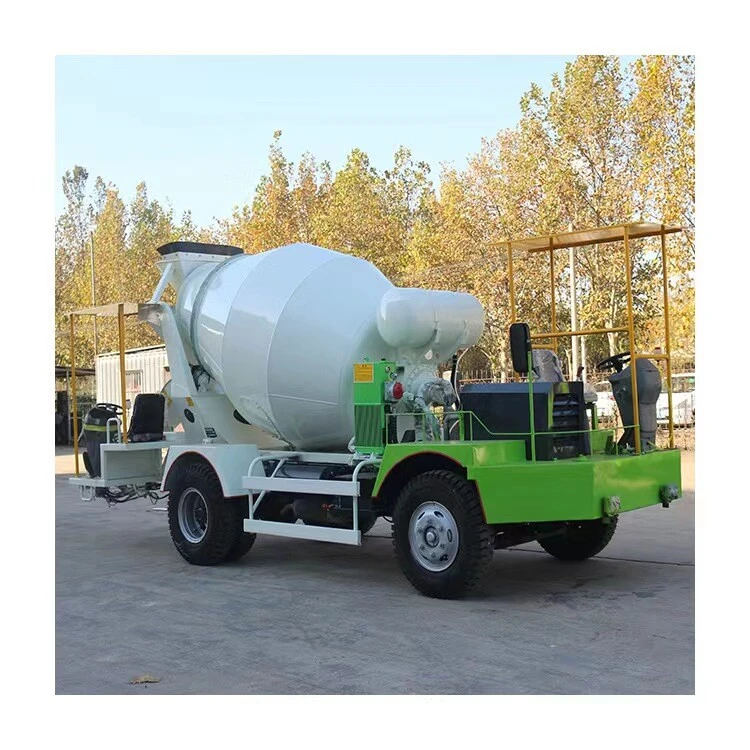

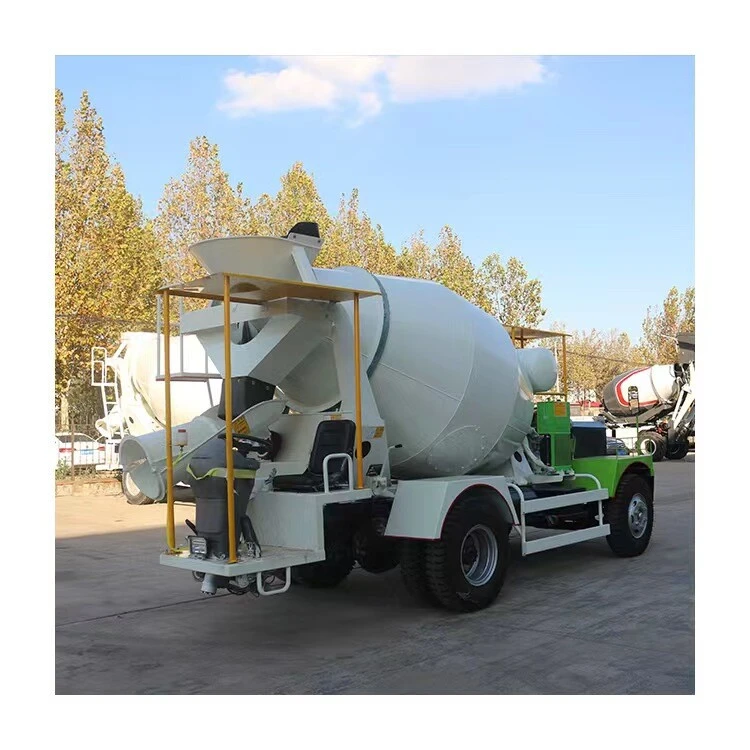

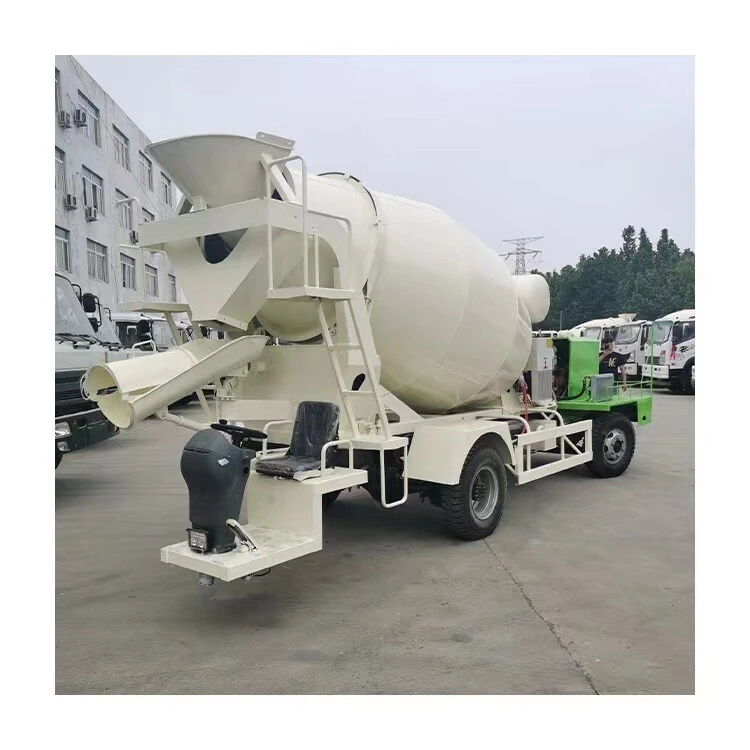

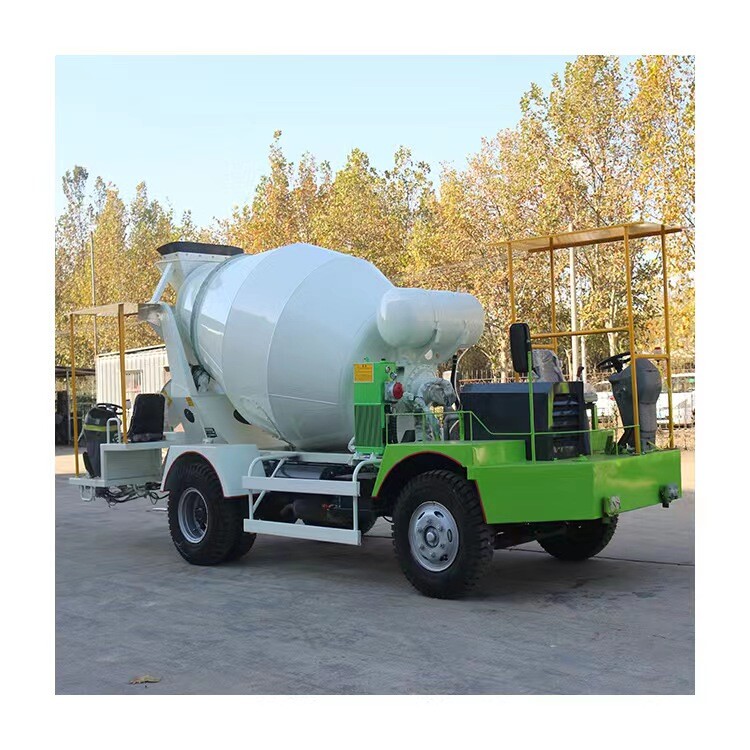

Two-Way Driving Mixer Truck

Name	Two-way driving mixer truck	Model	Two-way driving mixer truck
brand	Private Customization	Volume	8.5m³
Engine Model	Yuchai 220 HP supercharger "full power"	Oil type	diesel fuel
Engine power	161KW	Cab	Single cab or simple type
Drive type	6X4	Steering form	steering wheel
Number of axes	3	Direction assistance	Hydraulic power assist
Service brake	Air brake	Number of leaf springs	11 in front, 10+8 in back
Parking brake	Air brake	Fuel tank capacity	120L
Gearbox	Fast	Battery	2-12V-105AH
Gear shifting method	Manual	Tank and blade material	Q345B-5mm
Gear	4+1 "High and Low Speed"	Head	Q345B-8mm
Top speed	Front 45km/h Rear 15km/h	Hydraulic system	Closed hydraulic system《Imported》
Rear axle specifications	Double 153 heavy bridge	Reducer	Italian PMP 《Import》
Tire specifications	900-20 Steel Wire Tire	Wheelbase	2180mm
Tire quantity	10	Feeding speed	≥ 3m³/min
Discharging height	1350mm	Discharge residual rate	≤ 0.5%
Tank geometric volume	11.68m³	Discharging range	180° rotating discharge
Rated stirring volume	8.5m³	Loading and unloading operation	Post-operation
Emission standards	National Three	Tank rotation speed	12rpm-24rpm
Vehicle size	925 02 4 003500 (mm) adjustable	Hydraulic Radiator	18L temperature controlled automatic control aluminum exchanger
Optional Configuration	Air conditioning, enlarged feed hopper, support for mixing dry materials, leak-proof hopper, internal feeding and discharging operations, four-wheel drive, closed hydraulic system, construction machinery license and insurance, etc.
Remark	Two-way driving, convenient for tunnel construction, using Yuchai full-power engine "Special engine for mixer truck"All hydraulic systems are imported, ensuring long service life, fast discharging speed and fast feeding speed.A set of spare parts for the whole vehicle; gas line, pressure gauge, transmission shaft, sealing gasket, hydraulic oil pipe, etc.
Precautions	The front and rear operations use a split transmission lever to avoid the problem of the gear shifting mechanism failing to engage.The vehicle wiring harness and air circuit adopt standard mining accessories to avoid braking problems when going down long slopes.
