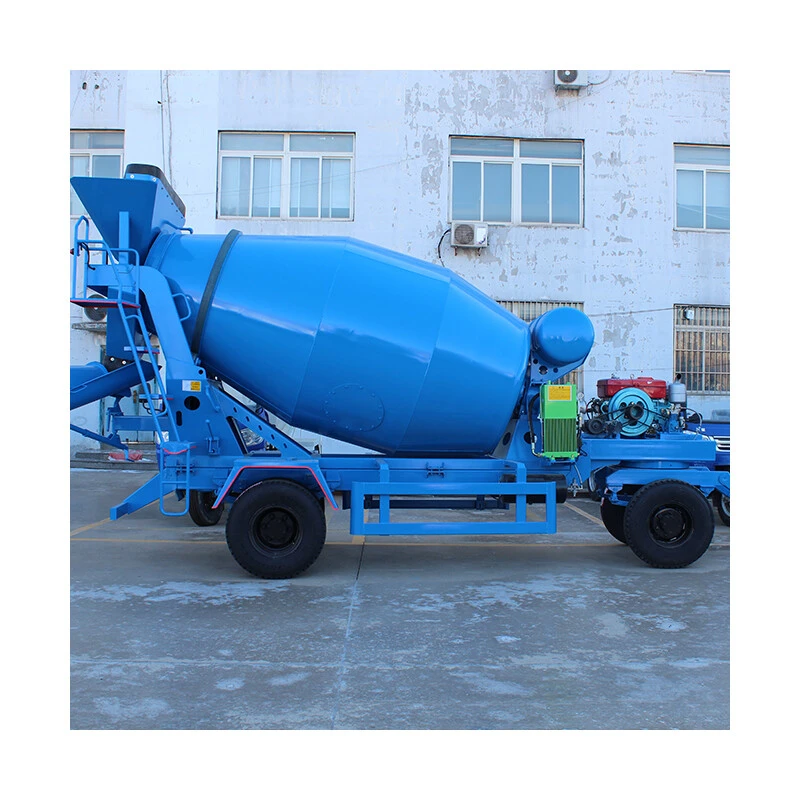

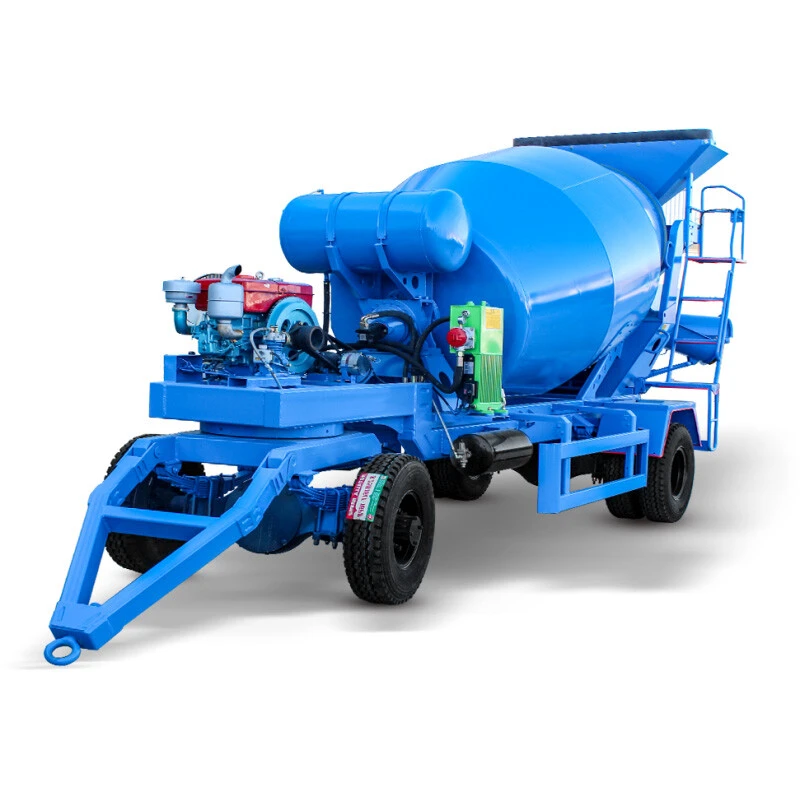

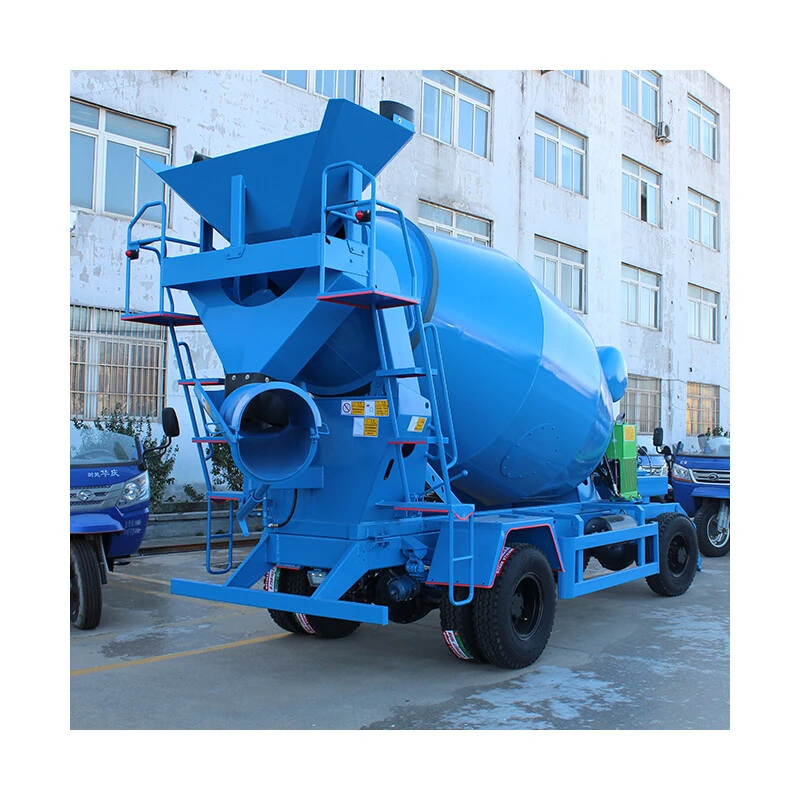

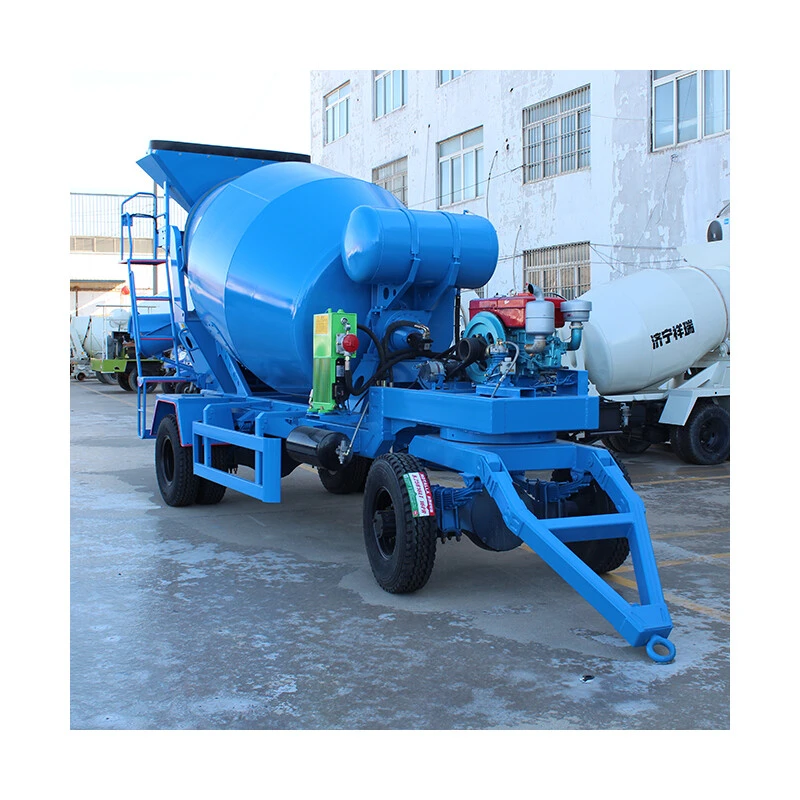

The power of towed concrete mixer trailer is transmitted to the hydraulic pump through the drive shaft, and the hydraulic pump produces hydraulic energy through the tubing to the hydraulic motor, the hydraulic motor converts the hydraulic energy into kinetic energy, and through the reducer torque transfer to the mixing tank, by adjusting the four volts handle Angle of the hydraulic pump, so as to achieve the positive and negative rotation of the mixing tank and the size of the speed, to achieve the loading,stirring,discharging and other operations.

Product Features

• Tank material: high strength wear-resistant Q345B steel, thickness 4mm, shot blasting anti-rust treatment

• Blade material: 4# thick alloy steel (with wear-resistant strip to improve service life)

• Water supply system: 400L water tank pneumatic water supply

• Feeding speed: Feeding speed m3/min ≥ 3

• Discharge residual rate: discharge residual rate (%) ≤ 0.5

• Discharge range: 180 ° up and down, left and right height adjustment

• Head material: alloy steel thickness 5mm

• Heat dissipation system: Xinxiang radiator 18 liters

• Discharge speed: Material speed m3/min ≥ 1

• Operation mode: left and right side / cab tripartite operation

• Safety device: Leakage receiving device is added
