Flat Mouth Mixer Truck

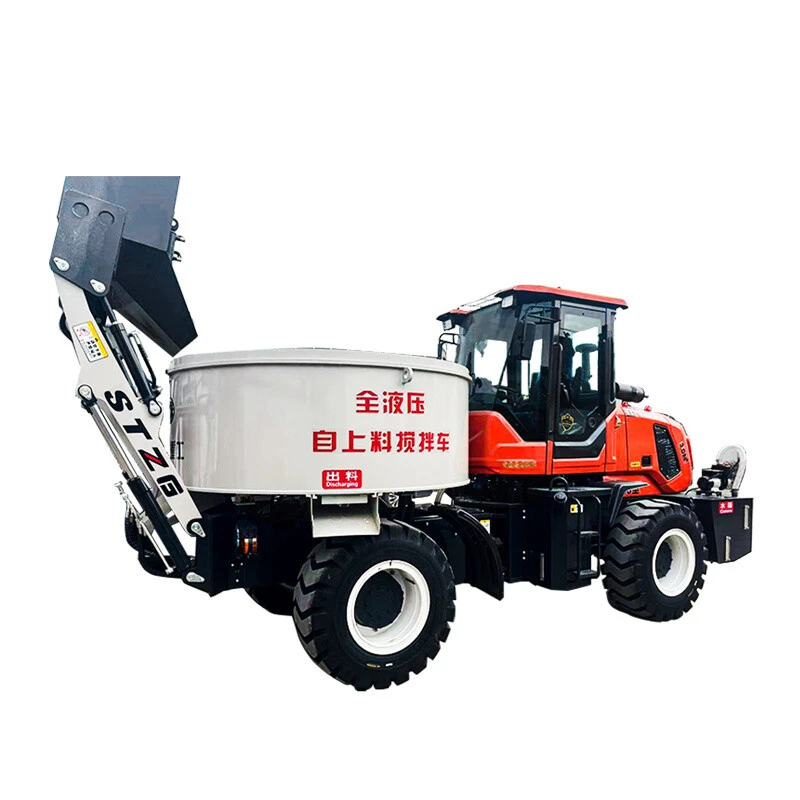

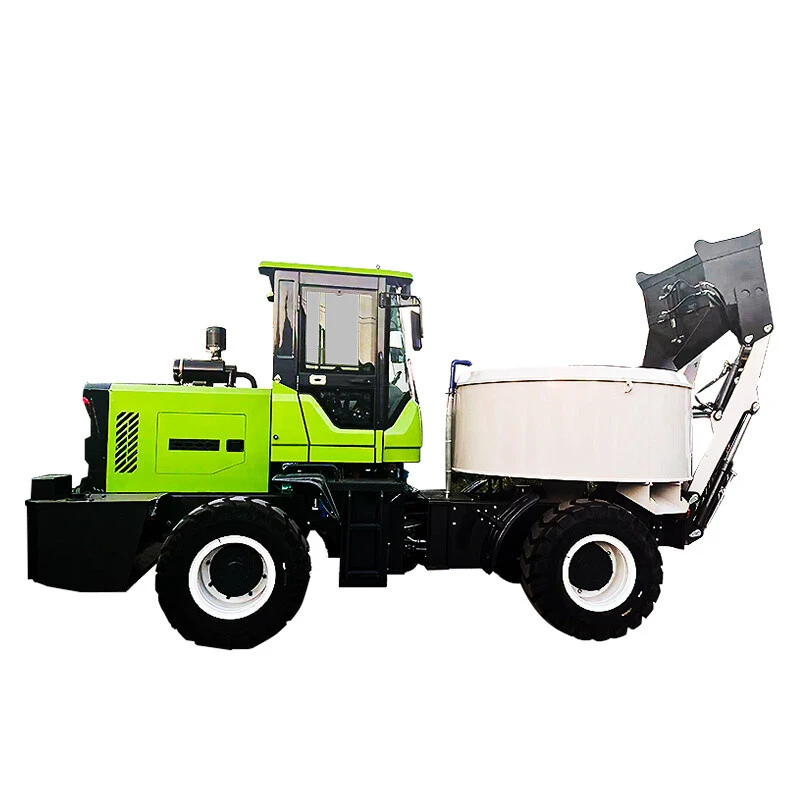

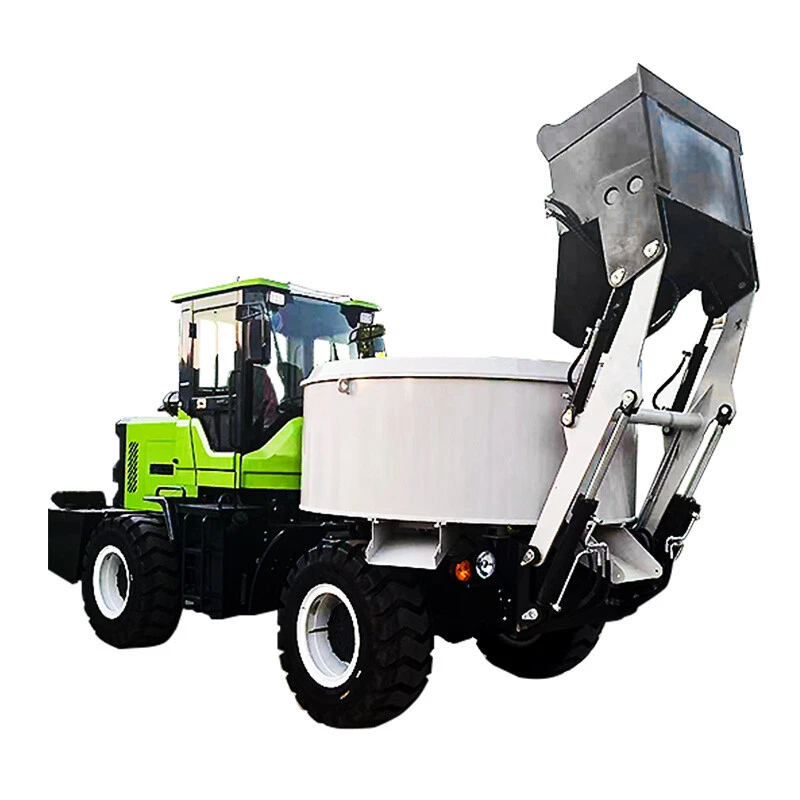

1800 type fully hydraulic self feeding flat mouth mixer truck


Product features:automatic loading and unloading,with the ability to install Product features:automatic loading and unloading,with the ability to install cement hoppers, integrated loadingand unloading,savinghuman resources,equipped with driving images,wide and unobstructed view,fully hydraulic configuration,high-power engine,suficient mixing power without jamming,open mixingtank,convenient loading,simple maintenance,small body,equipped with engineer-ing tires,suitable for various construction sites.


Model1800
Engine powerHuadong 490/4102 turbocharged
Tank capacity1.8CBM
Enigine power55-76KW
Driving methodfour-wheel drive
mixing methodPositiveand reversehydraulic stiring
Braking methodAir brake
Tire(Forward)20.5/70-16
Steeringfluid-link steering
Mixing tank height68-72cm
Tank materialmanganese steel
Water adding methodAutomatic
Water Tank capacity0.7m3
Discharge residual rate≤0.3
Stirring methodReversible hydraulic stirring
Discharge speed≤5minutes
Stirring time5 mins
Stirring tank diameter1600-1900mm
Discharge port height850mm
Dimension5300x2000x2800mm
Weight4400KG
