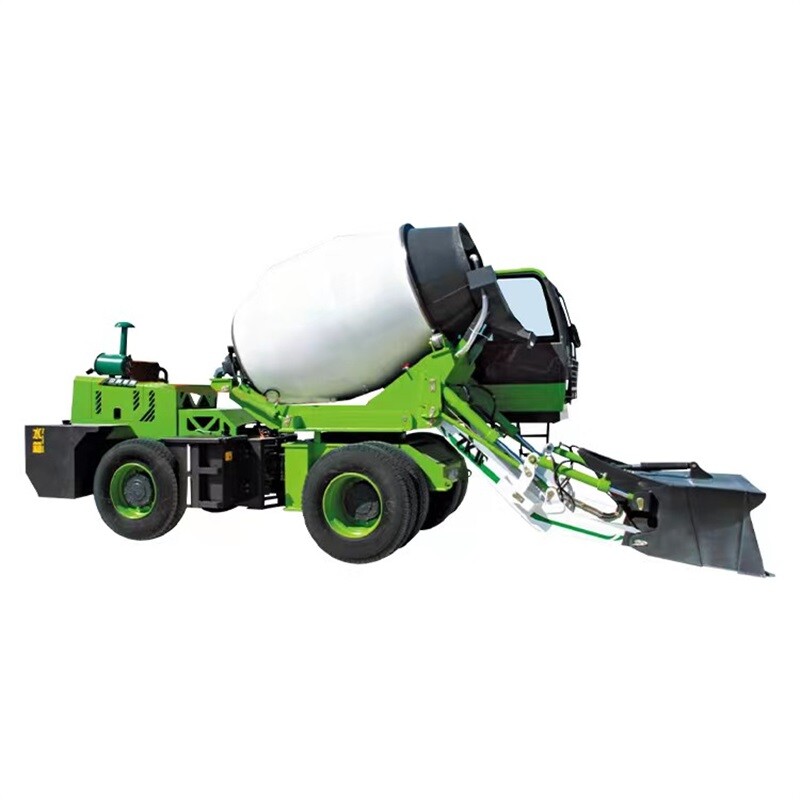

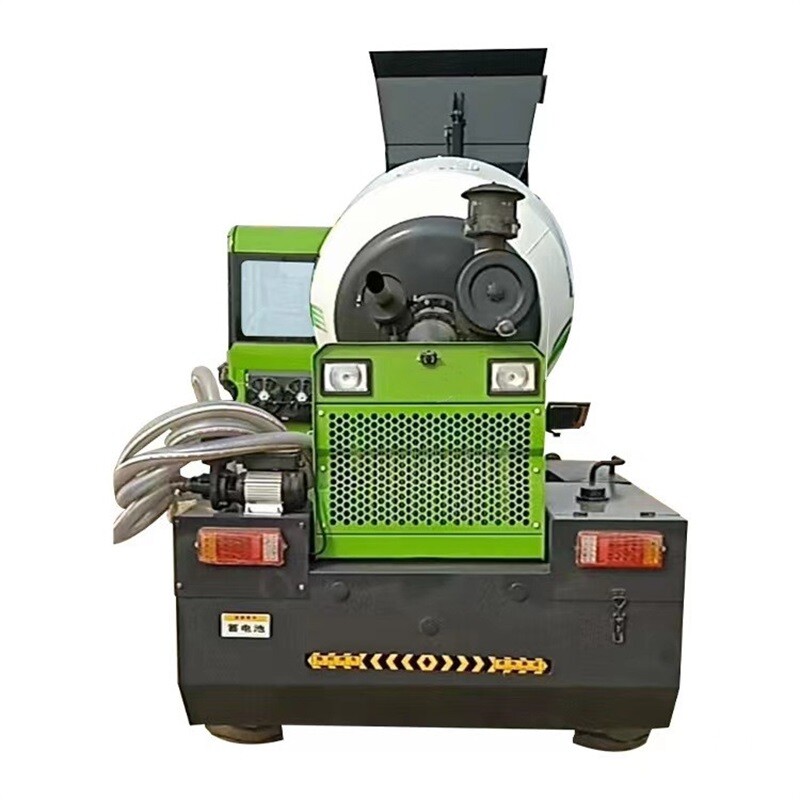

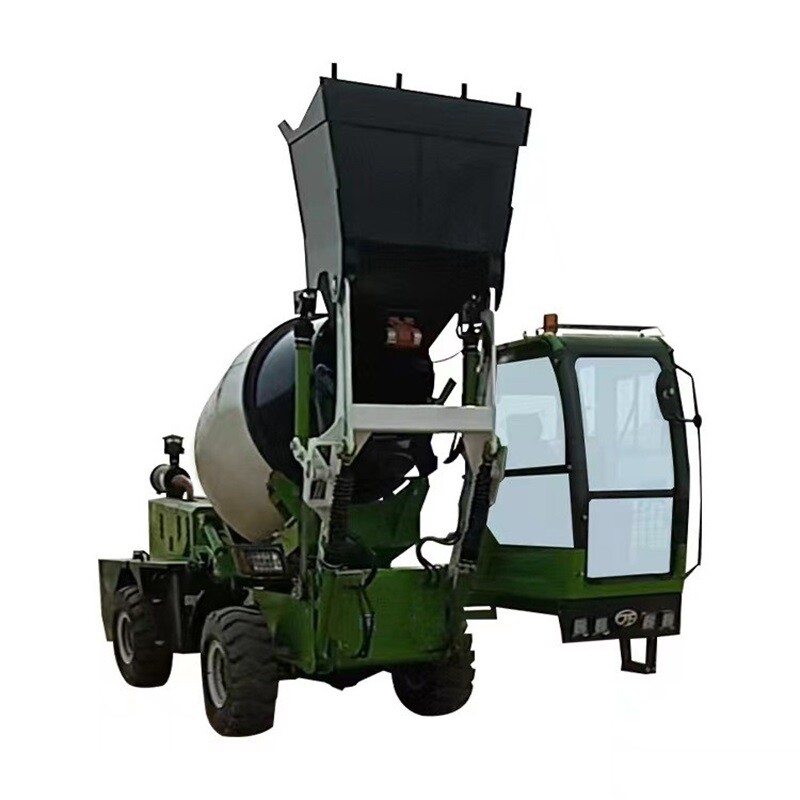

Self-loading Concrete mixer truck

Product Description

Self-loading concrete mixer truck, with front and rear double tires, four-wheel drive;

The cab and tank body are steered synchronously, can rotate 270 degrees to unload, and the tank body can be raised and lowered;

The forward and backward hydraulically controlled hopper, bucket flip unloading function, standard with cement material cabin and unloading chute.


Product Features

1.The main hydraulic components are all imported!

2.Save 5 labours at least every day.

3.Don't need electric concrete mixer, save electricity up to 100 degrees every day.

4.Don't need concrete mixer truck anymore!

5.Don't need wheel loader to load material anymore!


Overall Dimensions 7830x2680x4170mm
Wheelbase2900mm
Curb Weight 7500KG
Drive FormTorque converte
Maximum Speed30km / h
Maximum Gradeability30°
Minimum Turning Radius 5300mm
Minimum Ground Clearance 380mm
Diesel Engine ModelYUCHAl 4105, Turbo-charged
Engine Rated Power85 kW
Fuel Tank75L
Water Tank Volume620L
Mixing Drum Geometrical Capacity4740L
Rotation Speed13-20rpm
Concrete mixing volume3.5m3
