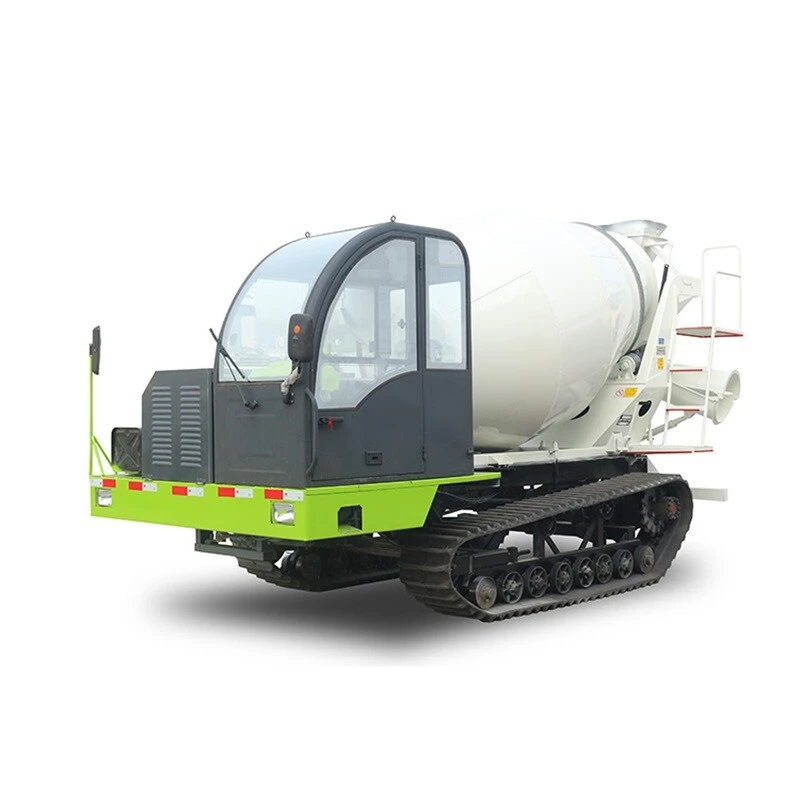

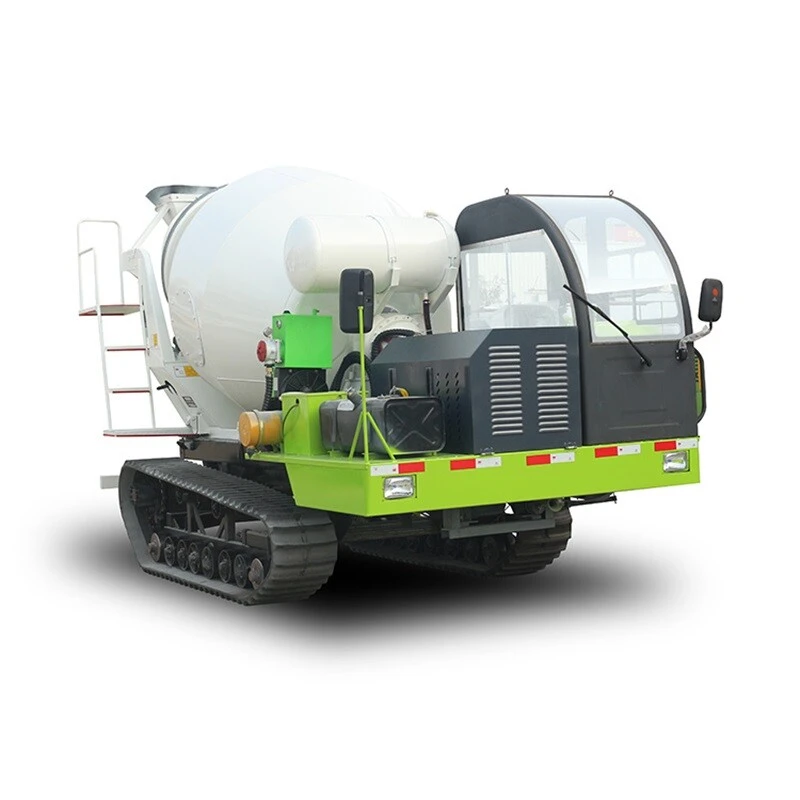

Crawler concrete mixing truck 2m3

Product Description

The tank has 2-5m3. The rubber crawler design increases the stability of the vehicle. The mixer truck can adapt to short-distance concrete transportation in various complex terrains. The design and installation are based on the experience of regular mixer truck layout, scientific planning, reasonable layout, and balanced distribution to ensure superior product performance, reliable use, and convenient maintenance.


Product Features

1. Large traction, good climbing and grip performance, and strong smooth transportation ability. Suitable for operations in rugged terrain, tortuous roads, muddy areas, etc.;

2. Strong power. Adopts Weichai engine;

3. The vehicle runs stably, with low vibration and low noise. The crawler specification is engineering rubber crawler.


NameTrack Concrete MixerTricycleModelXJ2000
Gear3-forward, 1-reverse, high and lowTank body and bladematerialQ345B-4mm
Top speed20km/hHead materialQ345B-6mm
Climbing capacity40°Hydraulic systemOpen hydraulic system
Wading depth450mmReduction boxwing etc..
Engine power48kWHydraulic valve15 single
Engine typeWeichai 4102Feed rate≥3m3/min
TransmissionBT-28BOutput speed≥1m3/min
Geometric volume of tank3.4m3Discharge residual rate≤0.5%
Max.agitation volume2m3Scope of discharging180°Rotary discharge
Vehicle size4100x1700x2320mmRated hydraulic pressure16MPa
Optional configurationAdd leak proof hopper, construction machinery license plate and insuranc
