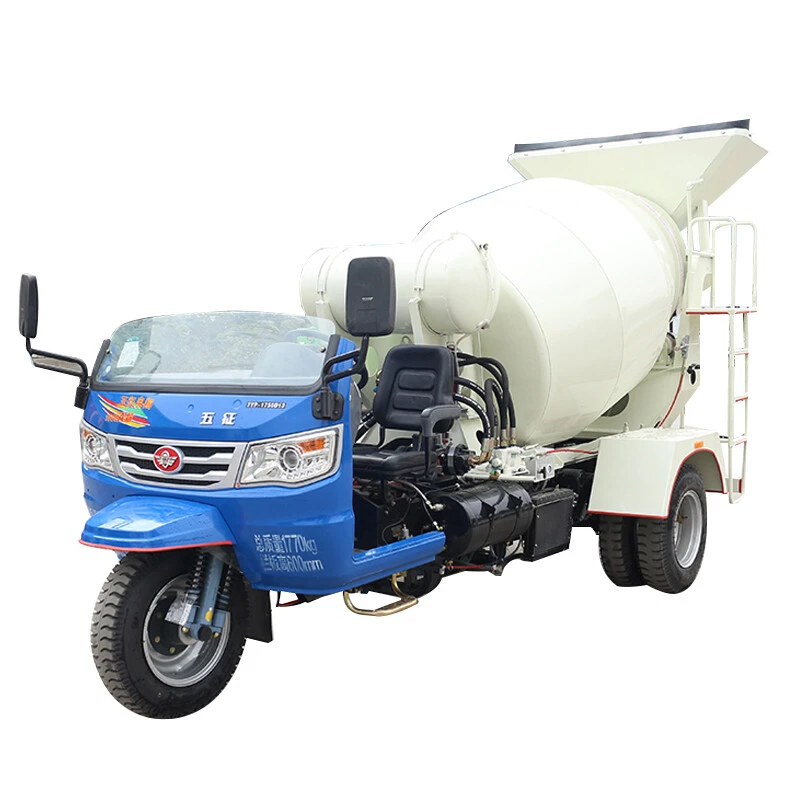

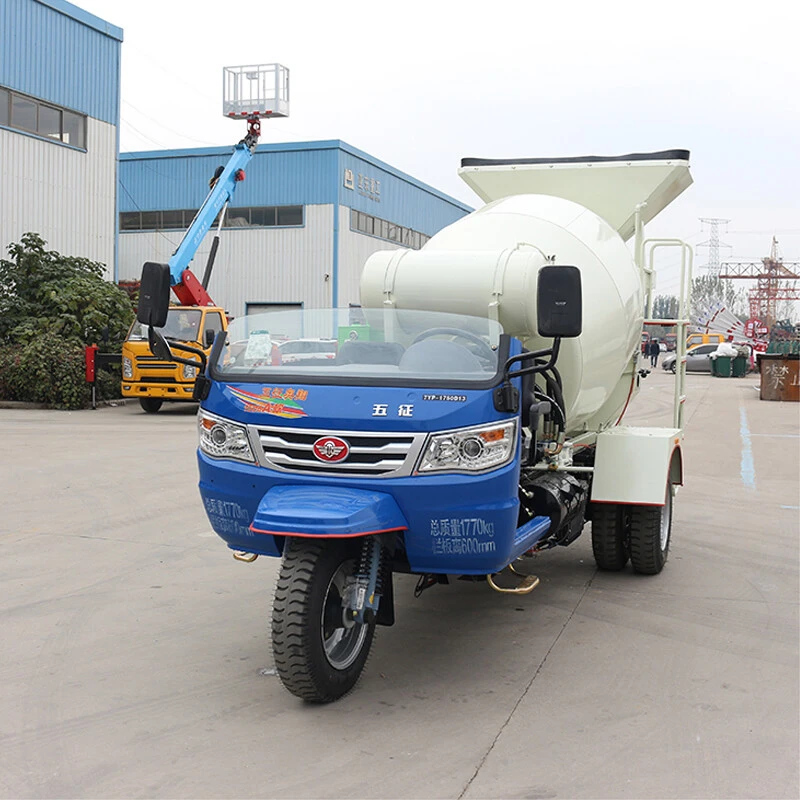

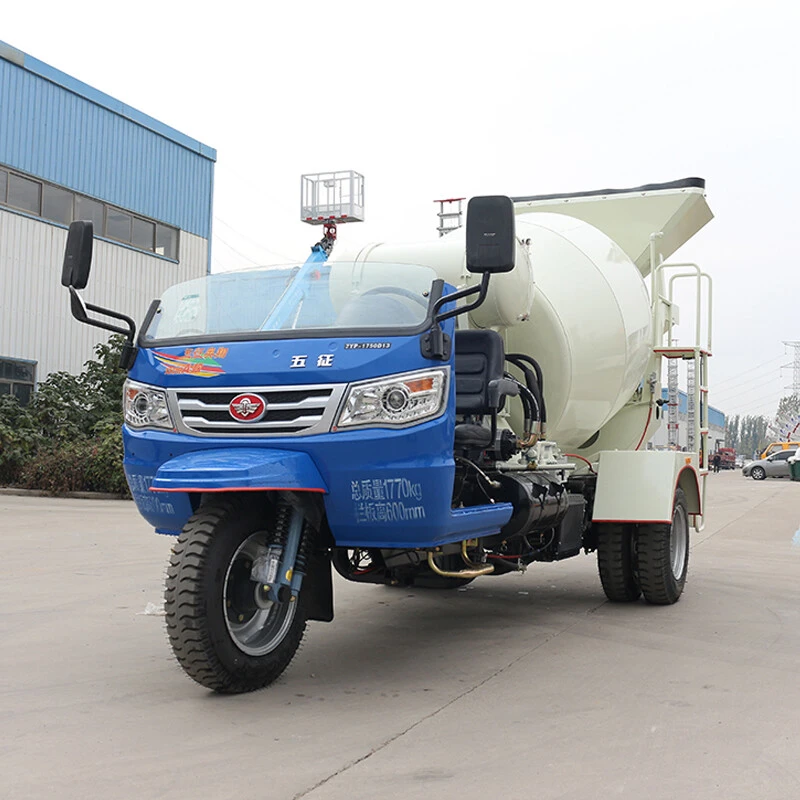

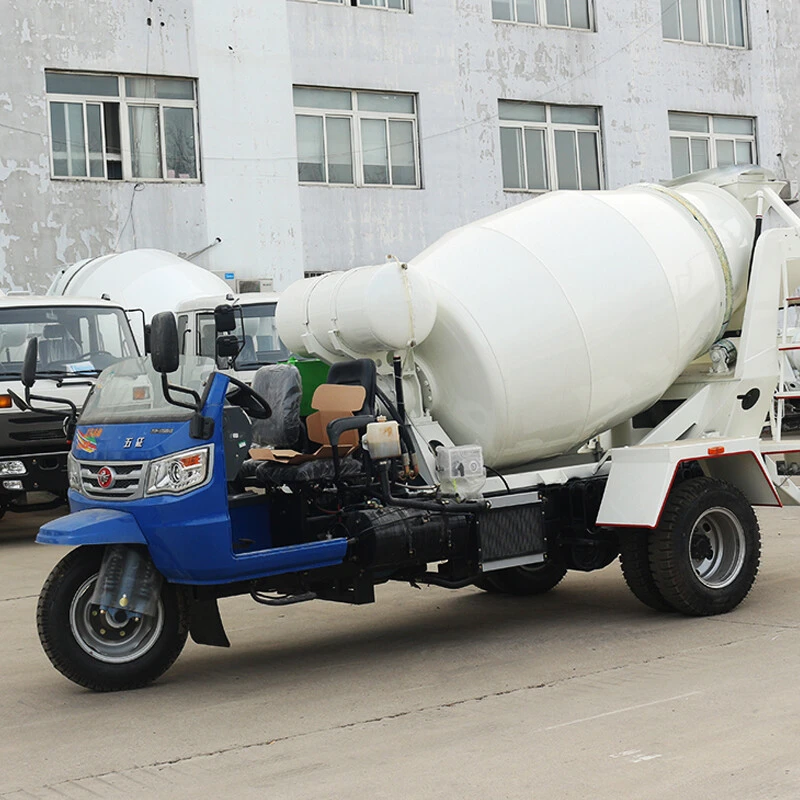

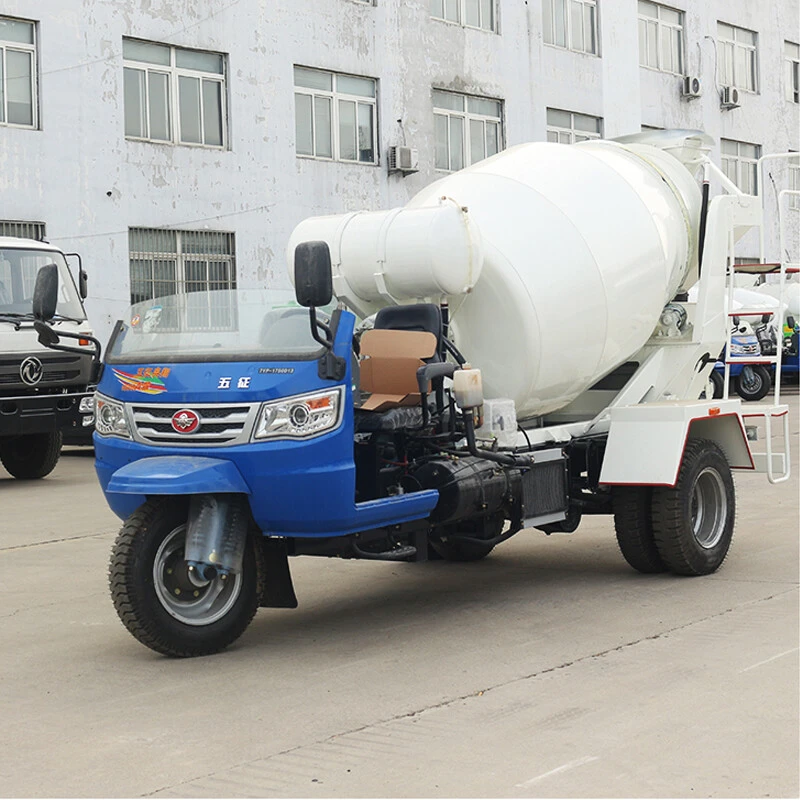

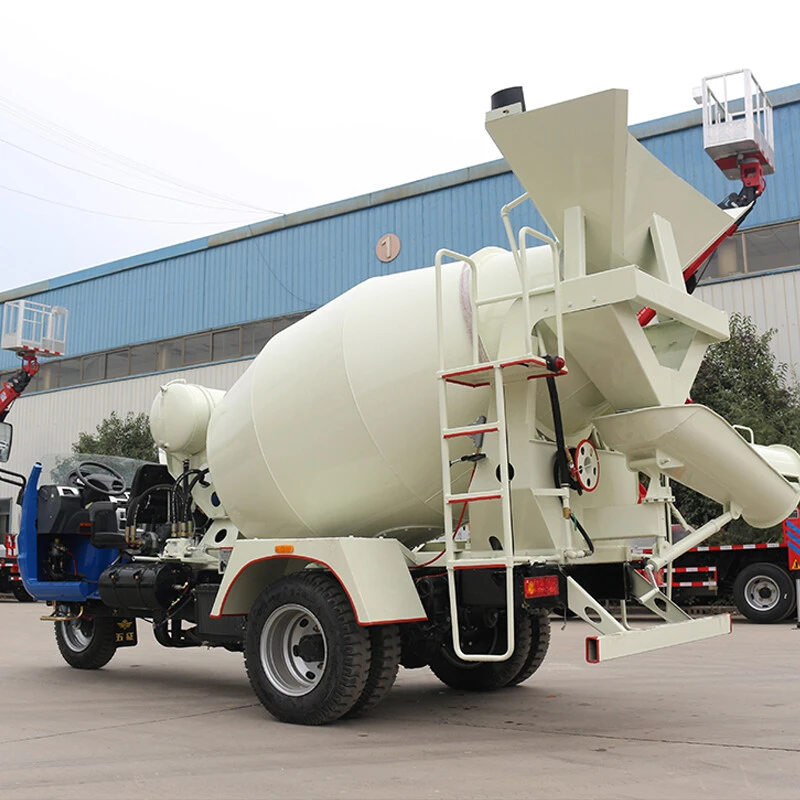

Wuzheng tricycle concrete mixer truck 2m3
It is a concrete mixing truck independently developed by our company. It adopts the latest advanced hydraulic technology and is mainly used in road construction, rural construction, construction and other projects. The car is a combination of concrete mixer and concrete transporter function as one of the equipment, integrating concrete mixing, transportation and discharging, can realize the loader or conveyor belt material, mixing dry, concrete transportation and on-site concrete construction of concrete mixer truck, save work time, more efficient, lower cost
Product advantages
1. Fast discharging speed. Minimum discharging of 1m3 per minute;
2. Low discharging residual rate. Less than 0.5%;
3. High corrosion resistance and wear resistance. The tank body is made of high-strength wear-resistant Q345B steel with a thickness of 4mm and anti-rust treatment;
4. Easy to operate and high working efficiency. It can be operated from the left and right sides and the cab;
5. The body is small, flexible and convenient. High working efficiency, suitable for construction in areas with narrow roads and rural areas.
Name | Tricycle concrete mixing truck | Model | XR2000 |
Brand | Wuzheng | Cubic meter | 2 cubic meters |
Engine type | OEM serviceZS1125A | Cooling mode | Water circulating air cooling |
Engine power | 32hp | Product Type | diesel oil |
Steering mode | Disc mechanical power steering | Fuel tank volume | 33L |
Driving mode | Rear wheel drive | Tyre | Front 6.50-16 rear 7.00-16LT |
Transmission | manual | Battery | 2-12V-60AH |
Gear | 4-forward, 1-reverse, high and low | Tank body and blade material | Q345B-4mm |
Top speed | 46km/h | head plate | Q345B-6mm |
Wheel base | 3150mm | Hydraulic system | Open hydraulic system |
Rear axle | 1061 | Reduction box | secco wing etc.. |
Brake | Air brake | Hydraulic valve | 15 single copy |
Big frame | One weighted double deck frame | Feed rate | ≥3m³/min |
The front wheel suspension | 2 x 3 suspension | Output speed | ≥1m³/min |
Geometric volume of tank | 3.4m³ | Discharge residual rate | ≤0.5% |
Max.agitation volume | 2.2m³ | Scope of discharging | 180°Rotary discharge |
Min. turning radius | 3.5m | Body rotation speed | 12rpm |
Unladen mass | 2285kg | Water tank volume | 120L |
Total mass | 7500kg | Hydraulic radiator | 18L Temperature controlled automatic control aluminum exchanger |
Vehicle size | 5250x1900x2550mm | Rated hydraulic pressure | 16MPa |
Optional configuration | Add leak proof hopper, construction machinery license plate and insurance, etc |
Name | Tricycle concrete mixing truck | Model | XR1600 |
Brand | Wuzheng | Cubic meter | 1.6 cubic meters |
Engine type | OEM service ZS1125A | Cooling mode | Water circulating air cooling |
Engine power | 32hp | Product Type | diesel oil |
Steering mode | Disc mechanical power steering | Fuel tank volume | 33L |
Driving mode | Rear wheel drive | Tyre | Front 6.50-16 rear 7.00-16LT |
Transmission | manual | Battery | 2-12V-60AH |
Gear | 4-forward, 1-reverse, high and low | Tank body and blade material | Q345B-4mm |
Top speed | 46km/h | head plate | Q345B-6mm |
Wheel base | 3150mm | Hydraulic system | Open hydraulic system |
Rear axle | 1061 | Reduction box | secco wing etc.. |
Brake | Air brake | Hydraulic valve | 15 single copy |
Big frame | One weighted double deck frame | Feed rate | ≥3m³/min |
The front wheel suspension | 2 x 3 suspension | Output speed | ≥1m³/min |
Geometric volume of tank | 2.5m³ | Discharge residual rate | ≤0.5% |
Max.agitation volume | 1.6m³ | Scope of discharging | 180°Rotary discharge |
Min. turning radius | 3.5m | Body rotation speed | 12rpm |
Unladen mass | 2155kg | Water tank volume | 120L |
Total mass | 6100kg | Hydraulic radiator | 18L Temperature controlled automatic control aluminum exchanger |
Vehicle size | 5370x1990x2130mm | Rated hydraulic pressure | 16MPa |
Optional configuration | Add leak proof hopper, construction machinery license plate and insurance, etc |
Name | Tricycle concrete mixing truck | Model | XR2600 |
Brand | Wuzheng | Cubic meter | 2.6 cubic meters |
Engine type | OEM serviceZS1125A | Cooling mode | Water circulating air cooling |
Engine power | 32hp | Product Type | diesel oil |
Steering mode | Disc mechanical power steering | Fuel tank volume | 33L |
Driving mode | Rear wheel drive | Tyre | Front 6.50-16 rear 7.00-16LT |
Transmission | manual | Battery | 2-12V-60AH |
Gear | 4-forward, 1-reverse, high and low | Tank body and blade material | Q345B-4mm |
Top speed | 46km/h | Head plate | Q345B-6mm |
wheel base | 3150mm | Hydraulic system | Open hydraulic system |
Rear axle | 1061 | Reduction box | secco wing etc.. |
Brake | Air brake | Hydraulic valve | 15 single copy |
Big frame | One weighted double deck frame | Feed rate | ≥3m³/min |
The front wheel suspension | 2 x 3 suspension | 0utput speed | ≥1m³/min |
Geometric volume of tank | 4.2m³ | Discharge residual rate | ≤0.5% |
Max.agitation volume | 2.6m³ | Scope of discharging | 180°Rotary discharge |
Min. turning radius | 3.5m | Body rotation speed | 12rpm |
Unladen mass | 2485kg | Water tank volume | 120L |
Total mass | 8800kg | Hydraulic radiator | 18L Temperature controlled automatic control aluminum exchanger |
Vehicle size | 5250x1995x2628mm | Rated hydraulic pressure | 16MPa |
Optional configuration | Support from the hopper, mixing dry, add leakproof hopper, engineering machinery licences and insurance, etc |
